Did you mean: JAN1N6135
Product Datasheet Search Results:

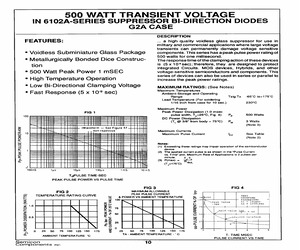

2 Pages, 93 KB, Scan- JAN1N6135
- Defense Logistics Agency
- 500 W, BIDIRECTIONAL, SILICON, TVS DIODE
2 Pages, 93 KB, Scan- JAN1N6135A
- Defense Logistics Agency
- 500 W, BIDIRECTIONAL, SILICON, TVS DIODE
Product Details Search Results:
Aeroflex.com/JAN1N6135
{"Status":"ACTIVE","Polarity":"BIDIRECTIONAL","Package Body Material":"UNSPECIFIED","Breakdown Voltage-Min":"144 V","Terminal Form":"WIRE","Number of Terminals":"2","Non-rep Peak Rev Power Dis-Max":"500 W","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"3 W","Case Connection":"ISOLATED","Terminal Position":"AXIAL","Diode Type":"TRANS VOLTAGE SUPPRESSOR DIODE","Package Shape":"ROUND","Configuration":"SINGLE","Technology":"AVALANCHE","Package Style":"LONG FORM","Number of Elements":"1"}...
1192 Bytes - 20:50:36, 08 January 2026
Aeroflex.com/JAN1N6135A
{"Status":"ACTIVE","Polarity":"BIDIRECTIONAL","Package Body Material":"UNSPECIFIED","Breakdown Voltage-Min":"152 V","Terminal Form":"WIRE","Number of Terminals":"2","Non-rep Peak Rev Power Dis-Max":"500 W","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"3 W","Case Connection":"ISOLATED","Terminal Position":"AXIAL","Diode Type":"TRANS VOLTAGE SUPPRESSOR DIODE","Package Shape":"ROUND","Configuration":"SINGLE","Technology":"AVALANCHE","Package Style":"LONG FORM","Number of Elements":"1"}...
1199 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135A+JAN
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"218","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"168","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"152","Military":"Y","Mil Number":"JAN1N6135A","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
970 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135A+JANTX
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"218","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"168","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"152","Military":"Y","Mil Number":"JANTX1N6135A","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
982 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135A+JANTXV
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"218","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"168","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"152","Military":"Y","Mil Number":"JANTXV1N6135A","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
988 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135AUS+JAN
{"V(RWM) (V) Work.Pk.Rev.Voltage":"121.6","Semiconductor Material":"Silicon","Package":"MELF-5.5","V(C) Nom. (V) Clamping Voltage":"218.4","P(D) Max.(W) Power Dissipation":"5.0","V(BR) Nom.(V)Rev.Break.Voltage":"160","I(RM) Max.(A) Reverse Current":"1.0u","Military":"Y","Mil Number":"JAN1N6135AUS","@I(R) (A) (Test Condition)":"8.0m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
951 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135AUS+JANTX
{"V(RWM) (V) Work.Pk.Rev.Voltage":"121.6","Semiconductor Material":"Silicon","Package":"MELF-5.5","V(C) Nom. (V) Clamping Voltage":"218.4","P(D) Max.(W) Power Dissipation":"5.0","V(BR) Nom.(V)Rev.Break.Voltage":"160","I(RM) Max.(A) Reverse Current":"1.0u","Military":"Y","Mil Number":"JANTX1N6135AUS","@I(R) (A) (Test Condition)":"8.0m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
964 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135AUS+JANTXV
{"V(RWM) (V) Work.Pk.Rev.Voltage":"121.6","Semiconductor Material":"Silicon","Package":"MELF-5.5","V(C) Nom. (V) Clamping Voltage":"218.4","P(D) Max.(W) Power Dissipation":"5.0","V(BR) Nom.(V)Rev.Break.Voltage":"160","I(RM) Max.(A) Reverse Current":"1.0u","Military":"Y","Mil Number":"JANTXV1N6135AUS","@I(R) (A) (Test Condition)":"8.0m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
970 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135+JAN
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"30","t(resp) Max.(s) Response Time":"5n","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"176","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"144","Military":"Y","Mil Number":"JAN1N6135","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.6","P(PP) Max.(W) Peak Pulse Power":"500"}...
1000 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135+JANTX
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"30","t(resp) Max.(s) Response Time":"5n","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"176","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"144","Military":"Y","Mil Number":"JANTX1N6135","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.6","P(PP) Max.(W) Peak Pulse Power":"500"}...
1012 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135+JANTXV
{"V(RWM) (V) Work.Pk.Rev.Voltage":"122","Semiconductor Material":"Silicon","V(C) Nom. (V) Clamping Voltage":"30","t(resp) Max.(s) Response Time":"5n","Package":"Axial-5","V(BR) Max.(V)Breakdown Voltage":"176","P(D) Max.(W) Power Dissipation":"3","V(BR) Nom.(V)Rev.Break.Voltage":"160","V(BR) Min.(V)Breakdown Voltage":"144","Military":"Y","Mil Number":"JANTXV1N6135","@I(R) (A) (Test Condition)":"8m","@I(PP) (A) (Test Condition)":"2.6","P(PP) Max.(W) Peak Pulse Power":"500"}...
1018 Bytes - 20:50:36, 08 January 2026
Dla.mil/1N6135US+JAN
{"V(RWM) (V) Work.Pk.Rev.Voltage":"121.6","Semiconductor Material":"Silicon","Package":"MELF-5.5","V(C) Nom. (V) Clamping Voltage":"218.4","P(D) Max.(W) Power Dissipation":"5.0","V(BR) Nom.(V)Rev.Break.Voltage":"160","I(RM) Max.(A) Reverse Current":"1.0u","Military":"Y","Mil Number":"JAN1N6135US","@I(R) (A) (Test Condition)":"8.0m","@I(PP) (A) (Test Condition)":"2.3","P(PP) Max.(W) Peak Pulse Power":"500"}...
946 Bytes - 20:50:36, 08 January 2026
