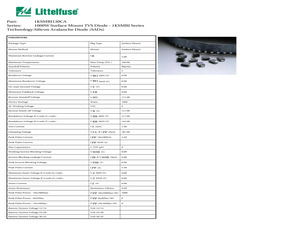

1KSMBJ130CA Series: 1000W Surface Mount TVS Diode - 1KSMBJ Series Technology:Silicon Avalanche Diode (SADs) PARAMETERS Package Type Pkg Type Surface Mount Mount Method Mount Surface Mount Maximum Reverse Leakage Current IR 5.00 Maximum Temperature Max Temp (AC ) 150.00 Standoff Polarity Polarity Bipolar Tolerance Tolerance 5 Breakover Voltage V BO MIN (V) 0.00 Maximum Breakover Voltage V BO MAX (V) 0.00 On-state forward Voltage V F (V) 0.00 Minimum Foldback Voltage V FB 0.00 Reverse Standoff Voltage V SO 111.00 Device Wattage Watts 1000 AC Working Voltage VAC 0 Reverse Stand-off Voltage V R (V) 111.00 Breakdown Voltage @ I_T V BR MIN (V) 117.00 Breakdown Voltage @ I_T V BR MAX (V) 143.00 Test Current I T (mA) 1.00 Clamping Voltage V CL @ I PP (AA) 187.00 Peak Pulse Current I PP 10x1000(A) 5.30 Peak Pulse Current I PP 8x20 (A) Max Capacitance C TYP (pF) 0 Working Inverse Blocking Voltage V WIB (V) 0.00 Inverse Blocking Leakage Current I IB @ V WIB (AA) 0.00 Peak Inverse Blockin
