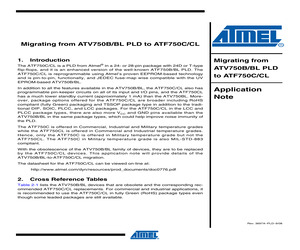

/883 or 5962-8872608LA ATF750C-10GM/883 or 5962-0720101MLA ATV750B-10LM/883 or 5962-88726083X ATF750C-10NM/883 or 5962-0720101M3A ATV750B-15DM/883 or 5962-88726083X ATF750C-15GM/883 or 5962-0720102MLA ATV750B-15LM/883 or 5962-88726093X ATF750C-15NM/883 or 5962-0720102M3A ATV750BL-15DM/883 or 5962-8872611LA ATF750C-15GM/883 or 5962-0720102MLA(2) ATV750BL-15LM/883 or 5962-88726113X ATF750C-15NM/883 or 5962-0720102M3A(2) Notes: 1. The speed grade of the recommended replacement device is not the same as the speed grade of the device being replaced. 2. The recommended replacement device is a Standard-Power device while the device being replaced is a Low-Power (L) device. 2 Migrating from ATV750B/BL PLD to ATF750C/CL 3697A-PLD-9/08 Migrating from ATV750B/BL PLD to ATF750C/CL Atmel strongly recommends customers who are using the ATV750BL-15DM/883 or ATV750BL15LM/883 devices to replace them with the ATF750C-15GM/883 or ATF750C-15NM/883, respectively, if lower power consumption is not an impo

125C) Class B, Fully Compliant ATF750C-15JC ATF750C-15PC ATF750C-15SC ATF750C-15XC(1) 28J 24P3 24S 24X(1) Commercial (0C to 70C) ATF750C-15JI ATF750C-15PI ATF750C-15SI 28J 24P3 24S Industrial (-40C to 85C) ATF750C-15GM/883 ATF750C-15NM/883 5962-0720102MLA 5962-0720102M3A 24D3 28L 24D3 28L Military/883 (-55C to 125C) Class B, Fully Compliant ATF750CL-15JC ATF750CL-15PC ATF750CL-15SC ATF750CL-15XC(1) 28J 24P3 24S 24X(1) Commercial (0C to 70C) ATF750CL-15JI ATF750CL-15PI ATF750CL-15SI 28J 24P3 24S Industrial (-40C to 85C) 1. Special order only: TSSOP package requires special thermal management. ATF750C(L) 0776K-PLD-07/07 ATF750C(L) ATF750C(L) Green Package Options (Pb/Halide-free/RoHS Compliant) tPD (ns) tCOS (ns) Ext. fMAXS (MHz) 7.5 6.5 10 15 7 10 Ordering Code Package Operation Range 95 ATF750C-7JX ATF750C-7PX ATF750C-7SX 28J 24P3 24S Commercial (0C to 70C) 83 ATF750C-10JU ATF750C-10PU ATF750C-10SU ATF750C-10XU 28J 24P3 24S 24X Industrial (-40C to 85C) 44 ATF750CL-15JU ATF750CL-15PU ATF750CL-15SU

ATF750C(L) Military Ordering Information tPD (ns) 10 15 Note: tCOS (ns) 7 10 Ext. fMAXS (MHz) 83 55 Ordering Code Package ATF750C-10GM/883 ATF750C-10NM/883 5962-0720101MLA 5962-0720101M3A 24D3 28L 24D3 28L ATF750C-15GM/883 ATF750C-15NM/883 5962-0720102MLA 5962-0720102M3A 24D3 28L 24D3 28L Operation Range Military/883 (-55 C to 125 C) Class B, Fully Compliant 1. Special order only: TSSOP package requires special thermal management. 31. ATF750C(L) Green Package Options (Pb/Halide-free/RoHS Compliant) tPD (ns) 7.5 10 15 tCOS (ns) 6.5 7 10 Ext. fMAXS (MHz) Ordering Code Package Operation Range 95 ATF750C-7JX ATF750C-7PX ATF750C-7SX 28J 24P3 24S Commercial (0 C to 70 C) 83 ATF750C-10JU ATF750C-10PU ATF750C-10SU ATF750C-10XU 28J 24P3 24S 24X Industrial (-40 C to 85 C) 44 ATF750CL-15JU ATF750CL-15PU ATF750CL-15SU ATF750CL-15XU 28J 24P3 24S 24X Industrial (-40 C to 85 C) 32. Using "C" Product for Industrial To use commercial product for industrial ranges, down-grade one speed grade from the Industrial to
