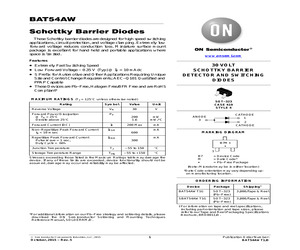

BAT54AWT1G, SBAT54AWT1G Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. Features Extremely Fast Switching Speed Low Forward Voltage - 0.35 V (Typ) @ IF = 10 mAdc AEC Qualified and PPAP Capable S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant* http://onsemi.com 30 VOLT SCHOTTKY BARRIER DETECTOR AND SWITCHING DIODES SOT-323 CASE 419 STYLE 4 MAXIMUM RATINGS (TJ = 125C unless otherwise noted) Rating Symbol Value Unit Reverse Voltage VR 30 V Forward Power Dissipation @ TA = 25C Derate above 25C PF 200 1.6 mW mW/C Forward Current (DC) IF 200 Max mA Non-Repetitive Peak Forward Current tp < 10 msec IFSM Repetit

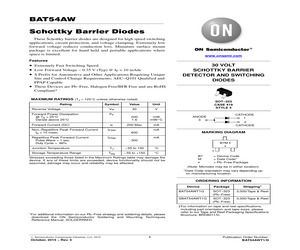

BAT54AWT1G Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. http://onsemi.com Features * Extremely Fast Switching Speed * Low Forward Voltage - 0.35 V (Typ) @ IF = 10 mAdc * These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant 30 VOLT SCHOTTKY BARRIER DETECTOR AND SWITCHING DIODES CATHODE 1 ANODE 3 2 CATHODE MAXIMUM RATINGS (TJ = 125C unless otherwise noted) Rating Symbol Value Unit Reverse Voltage VR 30 V Forward Power Dissipation @ TA = 25C Derate above 25C PF 200 1.6 mW mW/C IF 200 Max mA Non-Repetitive Peak Forward Current tp < 10 msec IFSM 600 mA Repetitive Peak Forward Current Pulse Wave = 1 sec, Duty Cycle = 66% IFRM 300 mA Junction Temperature TJ -55 to 125 C Storage Temperature Range Tstg -55 to +150 C Forward

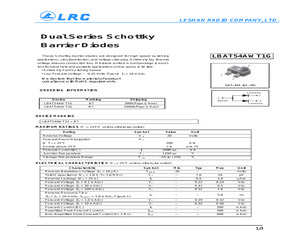

BAT54AWT1G These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. * Extremely Fast Switching Speed * Low Forward Voltage -- 0.35 Volts (Typ) @ I F = 10 mAdc 3 1 We declare that the material of product compliance with RoHS requirements. 2 SOT-323 (SC-70) ORDERING INFORMATION CATHODE 1 Device LBAT54AWT1G LBAT54AWT3G Marking B7 B7 3 ANODE Shipping 2 CATHODE 3000/Tape & Reel 10000/Tape & Reel DEVICE MARKING LBAT54AWT1G= B7 MAXIMUM RATINGS (T J = 125C unless otherwise noted) Rating Reverse Voltage Forward Power Dissipation @ T A = 25C Derate above 25C Forward Current(DC) Junction Temperature Storage Temperature Range Symbol Value VR PF IF TJ T stg Unit 30 Volts 200 1.6 200Max 125Max -55 to +150 mW mW/C mA C C ELECTRICAL CHARACTERISTICS (T A = 25C

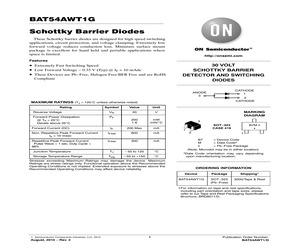

ay occur and reliability may be affected. B7M G G 1 B7 M G = Device Code = Date Code* = Pb-Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Package Shipping BAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel SBAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel Device *For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. (c) Semiconductor Components Industries, LLC, 2015 October, 2015 - Rev. 5 1 For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: BAT54AWT1/D BAT54AW ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 A) Min Typ Max 30 - - - 7.6 10 - 0.5 2.

ay occur and reliability may be affected. B7M G G 1 B7 M G = Device Code = Date Code* = Pb-Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Package Shipping BAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel SBAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel Device *For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. (c) Semiconductor Components Industries, LLC, 2015 October, 2015 - Rev. 5 1 For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: BAT54AWT1/D BAT54AW ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 A) Min Typ Max 30 - - - 7.6 10 - 0.5 2.

t Schottky Diodes Device Marking Device LRB715WT1G 3D VR (V) 40 STYLE VF IF (mA) 30 (A) (B) (C) Max (V) 0.37 (D) IR IF (mA) 1 (E) Max (A) 1.0 VF (V) 10 3 (F) Style A 3 2 1 1 2 Package 10. SC-70/ SOT-323 Surface Mount Schottky Diodes Device Marking Device LBAT54AWT1G LBAT54CWT1G LBAT54SWT1G LBAT54WT1G LRB706F-40T1G LRB715FT1G LRB717FT1G B7 5C B8 B4 3J 3D 3E STYLE VR (V) 30 30 30 30 40 40 40 (A) VF IF (mA) 200 200 200 200 30 30 30 (B) (C) Max (V) 0.4 0.4 0.4 0.4 0.37 0.37 0.37 (D) IR IF (mA) 10 10 10 10 1 1 1 (E) Max (A) 2 2 2 2 1.0 1.0 1.0 VF (V) 25 25 25 25 10 10 10 Style B A C E C A B 3 (F) 3 2 2 1 1 Package 11. SOT-23/ TO-236AB Surface Mount Schottky Diodes Device Marking Device VR (V) IF (mA) VF@IF (V) IR@VR (mA) (uA) (V) Style LBAS40-05LT1G 45 200 40 0.38 1.0 0.2 30 A LBAS70-05LT1G EH 70 70 0.41 1.0 0.1 50 A LRB425DLT1G D3L 100 45 0.55 100 30 10 A LRB491DLT1G D2E 1000 25 0.45 1000 200 20 E STYLE (A) (B) (C) (D) (E) (F) 3 3 2 2 1 1 Package 13 Leshan Radio Company, Ltd. http//:www.lrc.cn 11.1 S

ay occur and reliability may be affected. B7M G G 1 B7 M G = Device Code = Date Code* = Pb-Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Package Shipping BAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel SBAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel Device *For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. (c) Semiconductor Components Industries, LLC, 2014 December, 2014 - Rev. 4 1 For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: BAT54AWT1/D BAT54AW ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 A) Min Typ Max 30 - - - 7.6 10 - 0.5 2

ay occur and reliability may be affected. B7M G G 1 B7 M G = Device Code = Date Code* = Pb-Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Package Shipping BAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel SBAT54AWT1G SOT-323 (Pb-Free) 3,000/Tape & Reel Device *For additional information on our Pb-Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. (c) Semiconductor Components Industries, LLC, 2015 October, 2015 - Rev. 5 1 For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: BAT54AWT1/D BAT54AW ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 A) Min Typ Max 30 - - - 7.6 10 - 0.5 2.

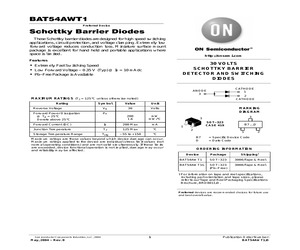

ce functional operation is not implied, damage may occur and reliability may be affected. MARKING DIAGRAM 3 3 SOT-323 CASE 419 1 2 B7....D 1 B7 D 2 = Specific Device Code = Date Code ORDERING INFORMATION Package Shipping BAT54AWT1 SOT-323 3000/Tape & Reel BAT54AWT1G SOT-323 (Pb-Free) 3000/Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. Semiconductor Components Industries, LLC, 2004 May, 2004 - Rev. 0 196 Publication Order Number: BAT54AWT1/D BAT54AWT1 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Min Typ Max Unit V(BR)R 30 - - V Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT - 7.6 10 pF Reverse Leakage (VR = 25 V) IR - 0.5 2.0 Adc Forward Voltage (IF = 0.1 mAdc) VF - 0.22 0.24 Vdc Forward Voltage (IF = 30 mAdc) VF - 0.41 0.5 Vd

2T1G 863-NSR20F20NXT5G 863-MBR120LSFT1G 863-MBRM120LT1G 863-1N5817G 863-1N5817RLG 863-1N5820G 863-1N5820RLG 863-MBRS320T3G 863-MBR120ESFT1G 863-MBR120ESFT3G 863-MBRM120ET1G 863-MBRS120T3G 863-MBRD320G 863-NSR0320MW2T1G 863-NSR0320XV6T1G 863-BAT54ALT1G 863-BAT54AWT1G 863-BAT54CLT1G 863-BAT54CLT3G 863-BAT54CTT1G 863-BAT54CWT1G 863-BAT54HT1G 863-BAT54LT1G 863-BAT54SLT1G 863-BAT54SWT1G 863-BAT54T1G 863-BAT54WT1G 863-BAT54XV2T1G 863-BAT54XV2T5G 863-MBD54DWT1G 863-NSR30CM3T5G 863-NSR0230P2T5G 863-NSR0140P2T5G 863-RB751S40T1G 863-RB751V40T1G 863-MBR130LSFT1G 863-NSR0130P2T5G 863-MBRS130LT3G 863-BAT54CXV3T1G 863-NSR05F30NXT5G 863-MBRA130LT3G 863-NSR10F30NXT5G (c) Copyright 2016 Mouser Electronics SOT-23 SOT-23 SC-70 SOT-23 SOT-23 SMA Powermite SMA Powermite TO-220 D2PAK TO-247 TO-220 SOD-123 FL SOD-123 FL SMA SOD-123 SOD-123 DSN-2 DSN-2 SOD-323 DSN-2 SOD-123 FL Powermite DO-41 DO-41 DO-201AD DO-201AD SMC SOD-123 FL SOD-123 FL Powermite SMB DPAK SOD-323 SOT-563 SOT-23 SC-70 SOT-23 SOT-23 SC-75 SC-70 SOD-3

419 1 2 1 B7 = Device Code M = Date Code* G = Pb-Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Device Package Shipping BAT54AWT1 SOT-323 3000/Tape & Reel BAT54AWT1G SOT-323 (Pb-Free) 3000/Tape & Reel BAT54AWT3 SOT-323 10,000/Tape & Reel BAT54AWT3G SOT-323 (Pb-Free) 10,000/Tape & Reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. (c) Semiconductor Components Industries, LLC, 2005 October, 2005 - Rev. 1 1 Publication Order Number: BAT54AWT1/D BAT54AWT1 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Min Typ Max Unit V(BR)R 30 - - V Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT - 7.6 10 pF Reverse Leakage (VR = 25 V) IR - 0.5 2.0 Adc Forward Voltag

0.5200080 .24 863-BAS40-04LT1G SOT-23 400.38 1 0.2 .08 863-BAS40-06LT1G SOT-23 400.38 1 0.2 .08 863-BAS40LT1G SOT-23 400.38 1 0.2 .11 863-BAS70-04LT1G SOT-23 70 0.410.1 - .08 863-BAS70LT1G SOT-23 70 0.410.1 - .15 863-BAT54ALT1G SOT-23 300.32 2 0.6 .06 863-BAT54AWT1G SC-70 300.32 2 0.6 .07 863-BAT54CLT3G SOT-23 300.32 2 0.6 .06 863-BAT54XV2T5G SOD523 300.32 2 0.6 .12 863-MBD54DWT1G SOT-363 300.32 2 - .18 863-MBR0520LT3G SOD-123 20 0.385250 5.5 .11 863-MBR0530T3G SOD-123 30 0.43130 5.5 .09 863-MBR1035G TO-220 35 0.84100150 .74 863-MBR1080G TO-220 80 0.8 6000150 .58 863-MBR1100RLG DO-41 1000.79500 50 .20 863-MBR120ESFT3G SOD-123 FL 200.5310 40 .21 863-MBR120VLSFT3G SOD-123 FL 20 0.34 600 45 .21 863-MBR130T3G SOD-123300.4560 5.5 .17 863-MBR140SFT3G SOD-123 FL 40 0.55 500 30 .14 863-MBR1535CTG TO-220 35 0.84100150 .38 863-MBR1635G TO-220 35 0.63200150 .82 863-MBR2090CTG TO-220 900.95101501.52 863-MBR2535CTG TO-220 35 0.82200150 .76 863-MBR3045STG TO-220 45 0.76200150 .72 863-MBR3045WTG TO-247 45 0.761

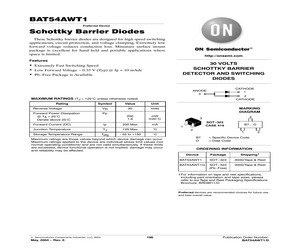

ce functional operation is not implied, damage may occur and reliability may be affected. MARKING DIAGRAM 3 3 SOT-323 CASE 419 1 2 B7....D 1 B7 D 2 = Specific Device Code = Date Code ORDERING INFORMATION Package Shipping BAT54AWT1 SOT-323 3000/Tape & Reel BAT54AWT1G SOT-323 (Pb-Free) 3000/Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Preferred devices are recommended choices for future use and best overall value. Semiconductor Components Industries, LLC, 2004 May, 2004 - Rev. 0 1 Publication Order Number: BAT54AWT1/D BAT54AWT1 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) (EACH DIODE) Characteristic Symbol Min Typ Max Unit V(BR)R 30 - - V Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT - 7.6 10 pF Reverse Leakage (VR = 25 V) IR - 0.5 2.0 Adc Forward Voltage (IF = 0.1 mAdc) VF - 0.22 0.24 Vdc Forward Voltage (IF = 30 mAdc) VF - 0.41 0.5 Vdc
