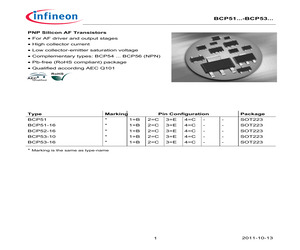

BCP51...-BCP53... PNP Silicon AF Transistors * For AF driver and output stages * High collector current * Low collector-emitter saturation voltage * Complementary types: BCP54 ... BCP56 (NPN) * Pb-free (RoHS compliant) package * Qualified according AEC Q101 Type Marking Pin Configuration Package BCP51 * 1=B 2=C 3=E 4=C - - SOT223 BCP51-16 * 1=B 2=C 3=E 4=C - - SOT223 BCP52-16 * 1=B 2=C 3=E 4=C - - SOT223 BCP53-10 * 1=B 2=C 3=E 4=C - - SOT223 BCP53-16 * 1=B 2=C 3=E 4=C - - SOT223 * Marking is the same as type-name 1 2011-10-13 BCP51...-BCP53... Maximum Ratings Parameter Symbol Collector-emitter voltage VCEO Value V BCP51 45 BCP52 60 BCP53 80 Collector-base voltage Unit VCBO BCP51 45 BCP52 60 BCP53 100 Emitter-base voltage VEBO 5 Collector current IC 1 Peak collector current, tp 10 ms ICM 1.5 Base current IB 100 Peak base current IBM 200 Total power dissipation- Ptot 2 W 150 C A mA TS 120C Junction temperature Tj Storage temperature Tstg Thermal Resistance Parameter Junction - soldering point1) Symbol RthJS -65
