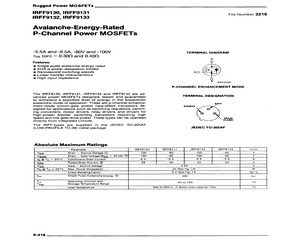

IRFF9132, IRFF9133 Avalanche-Energy-Rated P-Channel Power MOSFETs -5.5A and -6.5A, -60V and -100V ps (on) = 0.300 and 0.400 Features: a Single pulse avalanche energy rated a SOA is power-dissipation limited u Nanosecond switching speeds w Linear transfer characteristics g High input impedance The IRFF9130, IRFF9131, IRFF9132 and IRFF9133 are ad- vanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. These are p-channel enhance- ment-mode silicon-gate power field-effect transistors de- signed for applications such as switching regulators, switch- ing converters, motor drivers, relay drivers, and drivers for high-power bipolar switching transistors requiring high speed and low gate-drive power. These types can be operated directly from integrated circuits. The IRFF-types are supplied in the JEDEC TO-205AF (LOW-PROFILE TO-39) metal package. Absolute Maximum Ratings File Number 2216 TERMINAL DIAGRAM D G

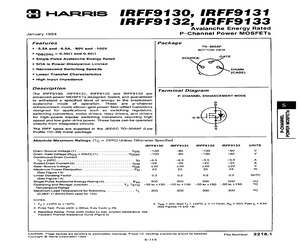

IRFF9132, IRFF9133 Avalanche Energy Rated January 1994 P-Channel Power MOSFETs Features Package TO-205AF e -5.5A and ~-6.5A, -80V and -100V BOTTOM VIEW * TDS(ON) = 0.302 and 0.400 GATE Single Pulse Avalanche Energy Rated SOURCE SOA is Power-Dissipation Limited o * Nanosecond Switching Speeds o o DRAIN Linear Transfer Characteristics (CASE) High Input Impedance Description Terminal Diagram The IRFF9130, IRFF9131, IRFF9132 and IRFF9133 are advanced power MOSFETs designed, tested, and guaranteed P-CHANNEL ENHANCEMENT MODE to withstand a specified level of energy in the breakdown avalanche mode of operation. These are p-channel D enhancement-mode silicon-gate power field-effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high-power bipolar switching transistors requiring high G speed and low gate-drive power. These types can be operated directly from integrated circuits. The IRFF types are supplie

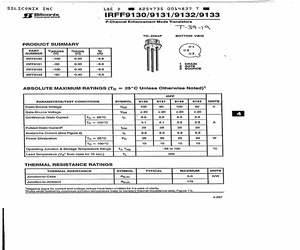

54735 0014837 T oe Fale _ IRFF9130/9131/9132/9133 P-Channel Enhancement Mode Transistors SILICONIX INC T-34 ~1 TO-205AF BOTTOM VIEW. PRODUCT SUMMARY PART | Viaryoss {| "oso lo numBer | Wy a (A) IRFF9130 -100 0.30 -6.5 IRFF9131 -60 0.30 -6.5 1 DRAIN 2 GATE IRFF9132 -100 0.40 -5.5 3 SOURCE IRFF9133 -60 0.40 -.5 ABSOLUTE MAXIMUM RATINGS (Tc = 25C Unless Otherwise Noted)! IRFF PARAMETERS/TEST CONDITIONS SYMBOL | 9130 9131 9132 ; 9133 | UNITS Drain-Source Voltage Vos 100 60 100 60 Vv Gate-Source Voltage Ves +20 +20 20 +20 Continuous Drain Current To = 25C Ip ~ 65 65 55 5.5 To = 100C 41 41 3.5 3.5 A Pulsed Drain Current? tom 26 26 23 23 Avalanche Current (See Figure 9) la 6.5 6.5 5.5 5.5 Power Dissipation To = 25C Pp 25 25 25 25 Ww To = 100C 10 10 10 10 Operating Junction & Storage Temperature Range | Ty, Tsig -65 to 150 C Lead Temperature ('/_ from case for 10 sec.) Th 300 THERMAL RESISTANCE RATINGS THERMAL RESISTANCE SYMBOL TYPICAL MAXIMUM UNITS Junction-to-Case Rinuc 5.0 K/iW Junction-to-Ambient Rin
