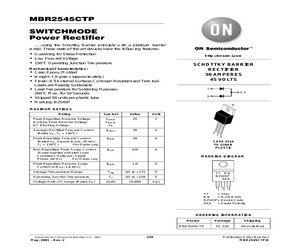

MBR2545CTP SWITCHMODETM Power Rectifier . . . using the Schottky Barrier principle with a platinum barrier metal. These state-of-the-art devices have the following features: * Guardring for Stress Protection * Low Forward Voltage * 175C Operating Junction Temperature http://onsemi.com Mechanical Characteristics: * Case: Epoxy, Molded * Weight: 1.9 grams (approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal SCHOTTKY BARRIER RECTIFIER 30 AMPERES 45 VOLTS Leads are Readily Solderable * Lead Temperature for Soldering Purposes: 1 * * 3 2, 4 260C Max. for 10 Seconds Shipped 50 units per plastic tube Marking: B2545P 4 MAXIMUM RATINGS Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 45 V Average Rectified Forward Current (Rated VR, TC = 130C) IF(AV) 30 A Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz, TC = 130C) Per Diode Leg IFRM 30 A Non-Repetitive Peak Surge Current (Surge Applied at Rated

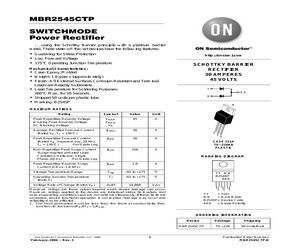

MBR2545CTP SWITCHMODE Power Rectifier . . . using the Schottky Barrier principle with a platinum barrier metal. These state-of-the-art devices have the following features: * Guardring for Stress Protection * Low Forward Voltage * 175C Operating Junction Temperature http://onsemi.com Mechanical Characteristics: * Case: Epoxy, Molded * Weight: 1.9 grams (approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal SCHOTTKY BARRIER RECTIFIER 30 AMPERES 45 VOLTS Leads are Readily Solderable * Lead Temperature for Soldering Purposes: * * 1 2, 4 260C Max. for 10 Seconds Shipped 50 units per plastic tube Marking: B2545P 3 4 MAXIMUM RATINGS Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 45 V Average Rectified Forward Current (Rated VR, TC = 130C) IF(AV) 30 A Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz, TC = 130C) Per Diode Leg IFRM 30 Non-Repetitive Peak Surge Current (Surge Applied at Rated Load

MBR2545CTP SWITCHMODE Power Rectifier . . . using the Schottky Barrier principle with a platinum barrier metal. These state-of-the-art devices have the following features: * Guardring for Stress Protection * Low Forward Voltage * 150C Operating Junction Temperature http://onsemi.com Mechanical Characteristics: * Case: Epoxy, Molded * Weight: 1.9 grams (approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal SCHOTTKY BARRIER RECTIFIER 30 AMPERES 45 VOLTS Leads are Readily Solderable * Lead Temperature for Soldering Purposes: * * 1 2, 4 260C Max. for 10 Seconds Shipped 50 units per plastic tube Marking: B2545P 3 4 MAXIMUM RATINGS Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 45 V Average Rectified Forward Current (Rated VR, TC = 130C) IF(AV) 30 A Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz, TC = 130C) Per Diode Leg IFRM 30 Non-Repetitive Peak Surge Current (Surge Applied at Rated Load

MBR2545CTP SWITCHMODE Power Rectifier . . . using the Schottky Barrier principle with a platinum barrier metal. These state-of-the-art devices have the following features: * Guardring for Stress Protection * Low Forward Voltage * 150C Operating Junction Temperature http://onsemi.com Mechanical Characteristics: * Case: Epoxy, Molded * Weight: 1.9 grams (approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal SCHOTTKY BARRIER RECTIFIER 30 AMPERES 45 VOLTS Leads are Readily Solderable * Lead Temperature for Soldering Purposes: * * 1 2, 4 260C Max. for 10 Seconds Shipped 50 units per plastic tube Marking: B2545P 3 4 MAXIMUM RATINGS Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 45 V Average Rectified Forward Current (Rated VR, TC = 130C) IF(AV) 30 A Peak Repetitive Forward Current (Rated VR, Square Wave, 20 kHz, TC = 130C) Per Diode Leg IFRM 30 Non-Repetitive Peak Surge Current (Surge Applied at Rated Load

cs To order literature on any of these products, see the Literature Distribution Center Information on page 31. 3Q-2001 ON-DisplayTM * 31 ON SEMICONDUCTOR MULTI-MARKET M U LT I - M A R K E T Low Cost Rectifiers for All SMPS Markets MBR1545CTP, MBR2045CTP, MBR2545CTP, MBR20100CTP and MBR20200CTP Low Cost Schottky SMPS Diodes in TO-220 Package Description * Low Cost Alternative to High Performance CT Devices * 150 C Operating Temp. * Guard Ring Protection Features * Dual Monolithic Design Device MBR1545CTP MBR2045CTP MBR2545CTP MBR20100CTP MBR20200CTP VRRM (V) 45 45 45 20 20 IO (A) 15 20 25 100 100 Vf @ 125C (V) 0.72 @ 15A 0.72 @ 20A 0.73 @ 30A 0.85 @ 20A 0.90 @ 20A IR @ 125C (mA) 15 @ 45V 15 @ 45V 40 @ 45V 6.0 @ 100V 50 @ 100V RJC (C/W) 3.0 2.0 2.0 2.0 2.0 * Reduced Typ. Leakage Current * MBR20200CTP/20100CTP Reduced High Temp Leakage * Reduced Capacitance 50% 120/240 Vac Benefits General Purpose Diodes * For Optimal Current Sharing Due Typical Vf Matching * Improved Thermal Performan

unt, pcb real estate and system cost are achieved. Fewer components equates to reduced inventory cost, fewer manufacturing steps, and higher quality. b Larry Hayes, Product Launch Manager New Rectifiers Optimized for Power Supplies MBR1545CTP, MBR2045CTP, MBR2545CTP, MBR20100CTP and MBR2020CTP Features Device Number Package Voltage Amperes Vf @ 25C Rated Specs MBR1545CTP MBR2045CTP MBR2545CTP MBR20100CTP MBR20200CTP TO-220 TO-220 TO-220 TO-220 TO-220 45 V 45 V 45 V 100 V 200 V 15 A 20 A 25 A 20 A 20 A 0.84 V 0.84 V 0.84 V 0.95 V 1.0 V * Standard TO-220 package * Two Rectifiers per Package * Guard Ring Protection * 150C Operating Temperature Benefits * Allows for Cost Effective Migration from Previous (Non-P) Version Available Literature MBR1545CTP/D MBR2045CTP/D MBR2545CTP/D MBR20100CTP/D MBR20200CTP/D DL151/D CDROM DOWNLOAD * Alternative Replacement for Competitor's Devices Table 1. Orderable Devices Applications * SMPS * Reverse Protection * Less Board Space Consumptio

per device) VRRM IFRM TC = 130 C (per leg) IFSM tp = 5 s sine 1060 VF 30 Apk, TJ = 125 C 0.73 V TJ Range - 65 to 150 C 30 A VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VS-MBR2535CTPbF VS-MBR2535CT-N3 VS-MBR2545CTPbF VS-MBR2545CT-N3 UNITS 35 35 45 45 V VR VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current SYMBOL per leg per device Peak repetitive forward current per leg TEST CONDITIONS Non-repetitive peak surge current TC = 130 C, rated VR IFRM Rated VR, square wave, 20 kHz, TC = 130 C Non-repetitive avalanche energy per leg Repetitive avalanche current per leg Revision: 30-Aug-11 IFSM UNITS 15 IF(AV) 5 s sine or 3 s rect. pulse VALUES 30 Following any rated load condition and with rated VRRM applied 30 A 1060 Surge applied at rated load conditions halfwave, single phase, 60 Hz 150 EAS TJ = 25 C, IAS = 2 A, L = 8 mH 16 mJ IAR Current decaying linearly to zero in 1 s Frequency limited by TJ maximum VA = 1.5 x VR typical 2 A D

25 TC = 130C MBR2545CT 0.82 @ 30 A 150 150 0.2 40 @ 125C 45 30 TC = 130C MBR3045ST 0.76 @ 30 A 150 150 0.2 40 @ 125C 45 15 TC = 105C MBR1545CTP 0.84 @ 15 A 150 150 0.1 15 @ 125C 45 20 TC = 135C MBR2045CTP 0.84 @ 20 A 150 150 0.1 15 @ 125C 45 25 TC = 130C MBR2545CTP 0.82 @ 30 A 150 150 0.2 40 @ 125C 100 20 TC = 133C MBR20100CTP 0.95 @ 20 A 150 150 0.1 6.0 @ 125C 200 20 TC = 125C MBR20200CTP 1.0 @ 20 A 150 150 1.0 50 @ 125C 7. VRRM unless noted 8. VRRM, TJ = 100C unless noted New Product All devices listed are ON Semiconductor preferred devices http://onsemi.com 218 4 2 2, 4 1 2 3 ON Semiconductor Selector Guide - Discrete Devices SCHOTTKY Rectifiers (continued) Table 8. TO-220 and D2PAK Thru-Hole Schottky Rectifiers (continued) Max VF @ iF IFSM TJ Max TC = 25C (Amperes) (C) (Volts) Max IR (Note 9.) TC = 25C (mA) Max IR (Note 10.) (mA) VRRM (Volts) IO (Amperes) IO Rating Condition 35 7.5 TC = 105C MBR735 0.84 @ 15 A 150 150 0.1 15 @ 125C 45 7.5 TC = 105C MBR745 0.84 @ 15 A 150 150 0.1 15 @ 125C 35

60 100 0.37 0.48 0.57 0.65 6 6 6 6 320 550 320 330 D-PAK D-PAK D-PAK D-PAK 12CWQ03FNTRPBF 12CWQ04FNTRPBF 12CWQ06FNTRPBF 12CWQ10FNTRPBF 15 15 15 15 45 45 45 60 0.56 0.82 0.72 0.7 15 30 20 15 990 1060 1020 810 TO-220AC TO-220AB TO-247AC TO-220AC 12TQ045PBF MBR2545CTPBF MBR3045WTPBF 15TQ060PBF 30CTQ100PBF 30CTT045 30WQ03FNPBF 32CTQ030PBF 40CTQ045PBF TO-220AB TO-220AB D-PAK TO-220AB TO-220AB 865-7122 170-7778 910-1225 864-7909 910-0989 16 45 0.63 16 1800 TO-220AC MBR1645PBF 18 45 0.53 18 1800 D2-PAK 18TQ045S.PBF 40CTQ150PBF 40L15CTPBF 40L15CWPBF 40L45CWPBF TO-220AB TO-220AB TO-247AC TO-247AC 865-7157 910-0911 910-0920 910-0997 19 15 0.32 19 700 D2-PAK 19TQ015SPBF 20 20 20 20 20 20 20 15 15 15 45 45 60 100 0.25 0.41 0.41 0.61 0.51 0.49 0.80 19 19 15 20 20 20 10 700 700 700 900 1800 3200 850 TO-220AC D2-PAK TO-220AC TO-252AA TO-220AC TO-247AC TO-220 20L15TPBF 20L15TSPBF STPS20L15DPBF 20WT04FN 20TQ045PBF MBR4060WTPBF MBR20100CTKPBF 42CTQ030PBF 43CTQ100PBF 47CTQ020SPBF TO-220AB TO-220AB D2-PAK 30 48CTQ0

per device) VRRM IFRM TC = 130 C (per leg) IFSM tp = 5 s sine 1060 VF 30 Apk, TJ = 125 C 0.73 V TJ Range - 65 to 150 C 30 A VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VS-MBR2535CTPbF VS-MBR2535CT-N3 VS-MBR2545CTPbF VS-MBR2545CT-N3 UNITS 35 35 45 45 V VR VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current SYMBOL per leg per device Peak repetitive forward current per leg TEST CONDITIONS Non-repetitive peak surge current TC = 130 C, rated VR IFRM Rated VR, square wave, 20 kHz, TC = 130 C Non-repetitive avalanche energy per leg Repetitive avalanche current per leg Revision: 30-Aug-11 IFSM UNITS 15 IF(AV) 5 s sine or 3 s rect. pulse VALUES 30 Following any rated load condition and with rated VRRM applied 30 A 1060 Surge applied at rated load conditions halfwave, single phase, 60 Hz 150 EAS TJ = 25 C, IAS = 2 A, L = 8 mH 16 mJ IAR Current decaying linearly to zero in 1 s Frequency limited by TJ maximum VA = 1.5 x VR typical 2 A D

25 TC = 130C MBR2545CT 0.82 @ 30 A 150 150 0.2 40 @ 125C 45 30 TC = 130C MBR3045ST 0.76 @ 30 A 150 150 0.2 40 @ 125C 45 15 TC = 105C MBR1545CTP 0.84 @ 15 A 150 150 0.1 15 @ 125C 45 20 TC = 135C MBR2045CTP 0.84 @ 20 A 150 150 0.1 15 @ 125C 45 25 TC = 130C MBR2545CTP 0.82 @ 30 A 150 150 0.2 40 @ 125C 100 20 TC = 133C MBR20100CTP 0.95 @ 20 A 150 150 0.1 6.0 @ 125C 200 20 TC = 125C MBR20200CTP 1.0 @ 20 A 150 150 1.0 50 @ 125C Device IFSM TJ Max (Amperes) (C) Max IR (Note 7) TC = 25C (mA) 7. VRRM unless noted 8. VRRM, TJ = 100C unless noted New Product All devices listed are ON Semiconductor preferred devices http://onsemi.com 217 Package CASE 221A-09 (TO-220AB) (TO 220AB) 4 2, 2 4 1 2 3 ON Semiconductor Selector Guide - Discrete Devices SCHOTTKY Rectifiers (continued) Table 8. TO-220 and D2PAK Thru-Hole Schottky Rectifiers (continued) Max VF @ iF TC = 25C (Volts) Max IR (Note 10) (mA) VRRM (Volts) IO (Amperes) IO Rating Condition 35 7.5 TC = 105C MBR735 0.84 @ 15 A 150 150 0.1 15 @ 125C 45 7.5 TC =

per device) VRRM IFRM TC = 130 C (per leg) IFSM tp = 5 s sine 1060 VF 30 Apk, TJ = 125 C 0.73 V TJ Range - 65 to 150 C 30 A VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VS-MBR2535CTPbF VS-MBR2535CT-N3 VS-MBR2545CTPbF VS-MBR2545CT-N3 UNITS 35 35 45 45 V VR VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current SYMBOL per leg per device Peak repetitive forward current per leg TEST CONDITIONS Non-repetitive peak surge current TC = 130 C, rated VR IFRM Rated VR, square wave, 20 kHz, TC = 130 C Non-repetitive avalanche energy per leg Repetitive avalanche current per leg Revision: 30-Aug-11 IFSM UNITS 15 IF(AV) 5 s sine or 3 s rect. pulse VALUES 30 Following any rated load condition and with rated VRRM applied 30 A 1060 Surge applied at rated load conditions halfwave, single phase, 60 Hz 150 EAS TJ = 25 C, IAS = 2 A, L = 8 mH 16 mJ IAR Current decaying linearly to zero in 1 s Frequency limited by TJ maximum VA = 1.5 x VR typical 2 A D

per device) VRRM IFRM TC = 130 C (per leg) IFSM tp = 5 s sine 1060 VF 30 Apk, TJ = 125 C 0.73 V TJ Range - 65 to 150 C 30 A VOLTAGE RATINGS PARAMETER Maximum DC reverse voltage Maximum working peak reverse voltage SYMBOL VS-MBR2535CTPbF VS-MBR2535CT-N3 VS-MBR2545CTPbF VS-MBR2545CT-N3 UNITS 35 35 45 45 V VR VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current SYMBOL per leg per device Peak repetitive forward current per leg TEST CONDITIONS Non-repetitive peak surge current TC = 130 C, rated VR IFRM Rated VR, square wave, 20 kHz, TC = 130 C Non-repetitive avalanche energy per leg Repetitive avalanche current per leg Revision: 30-Aug-11 IFSM UNITS 15 IF(AV) 5 s sine or 3 s rect. pulse VALUES 30 Following any rated load condition and with rated VRRM applied 30 A 1060 Surge applied at rated load conditions halfwave, single phase, 60 Hz 150 EAS TJ = 25 C, IAS = 2 A, L = 8 mH 16 mJ IAR Current decaying linearly to zero in 1 s Frequency limited by TJ maximum VA = 1.5 x VR typical 2 A D

5/45 V MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VALUES UNITS 30 A 35/45 V Rectangular waveform (per device) VRRM IFRM TC = 130 C (per leg) IFSM tp = 5 s sine VF 30 Apk, TJ = 125 C TJ Range 30 A 1060 0.73 V - 65 to 150 C MBR2535CTPbF MBR2545CTPbF UNITS 35 45 V VOLTAGE RATINGS PARAMETER SYMBOL Maximum DC reverse voltage VR Maximum working peak reverse voltage VRWM ABSOLUTE MAXIMUM RATINGS PARAMETER Maximum average forward current SYMBOL per leg per device Peak repetitive forward current per leg TEST CONDITIONS Non-repetitive peak surge current TC = 130 C, rated VR IFRM Rated VR, square wave, 20 kHz, TC = 130 C Non-repetitive avalanche energy per leg Repetitive avalanche current per leg IFSM UNITS 15 IF(AV) 5 s sine or 3 s rect. pulse VALUES 30 Following any rated load condition and with rated VRRM applied 30 A 1060 Surge applied at rated load conditions halfwave, single phase, 60 Hz 150 EAS TJ = 25 C, IAS = 2 A, L = 8 mH 16 mJ IAR Current decaying linearly to zero in 1 s Freq

VS-MBR2545CT-1PBF I (2)(6) Power Plastic Through Hole TO-262 (I PAK) 35-40-45 0.73 12.5 150 VS-25CTQ045-1PBF I Power Plastic Through Hole(2)(6) TO-262 (I2PAK) 35-40-45 0.64 12.5 150 Power Plastic Through Hole 25 VS-25CTQ045PBF I 25 VS-25CTQ045-N3 I 25 VS-MBR2545CTPBF I 25 VS-MBR2545CT-N3 I 30 VS-32CTQ030SxPBF 30 VS-MBRB3030CTLxPBF 30 30 Power Plastic Through Hole TO-220AC TO-220AC (2)(8) Power Plastic Through Hole(2)(7) (1)(8) (1)(7) 2 2 (2)(8) Power Plastic Through Hole(2)(7) Power Plastic Through Hole TO-220AB 35-40-45 0.64 12.5 150 TO-220AB 35-40-45 0.64 12.5 150 TO-220AB 45 0.73 12.5 150 TO-220AB 45 0.73 12.5 150 I Power Plastic SMD (2)(3)(6) TO-263AB (D PAK) 30 0.53 15 150 I Power Plastic SMD(2)(3)(6) TO-263AB (D2PAK) 30 0.51 15 150 VS-30CTQ045SxPBF I Power Plastic SMD (2)(3)(6) TO-263AB (D PAK) 45 0.70 15 175 VS-MBRB3045CTxPBF I Power Plastic SMD(2)(3)(6) TO-263AB (D2PAK) 45 0.72 15 150 Power Plastic Through Hole(2)(7) Note: 1. Singled die device 2. Dual center-tapped device (VF limit at I
