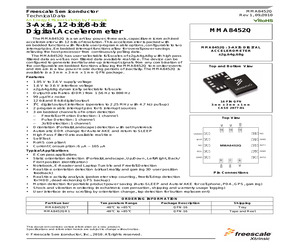

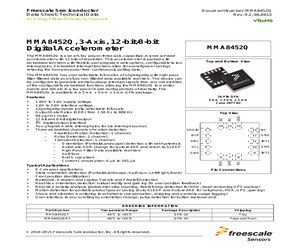

ic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, pulse detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) 2010-2015 Freescale Semiconductor, Inc. All rights reserved. Shipping Contents 1 2 3 4 5 6 7 8 9 Block Diagram and Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mechanical and Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Mechanical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Electrical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 105.19 30.81 Description For Development of MMA9550L Series For Development of MMA9551L Series For Development of MMA9559L Series 3-AXIS ACCELEROMETERS NXP MOUSER STOCK NO. 841-FXLN8361QR1 841-FXLN8371QR1 841-MMA7660FCR1 841-MMA8453QT 841-MMA8453QR1 841-MMA8452QR1 841-MMA8451QT 841-MMA8451QR1 841-MMA8652FCR1 841-MMA8653FCR1 841-MMA8491QR1 841-MMA9553LR1 Development Tools 841-EVBCRTOUCH 841-LFSTBEB845X 841-RDMMA845X 841-RDFXWIN8USB 841-RDMMA8491 841-DEMOMMA8491 NXP Part No. FXLN8361QR1 FXLN8371QR1 MMA7660FCR1 MMA8453QT MMA8453QR1 MMA8452QR1 MMA8451QT MMA8451QR1 MMA8652FCR1 MMA8653FCR1 MMA8491QR1 MMA9553LR1 For quantities greater than listed, call for quote. Acceleration Sensitivity (g) Package QFN-12 QFN-12 DFN-10 QFN-16 QFN-16 QFN-16 QFN-16 QFN-16 DFN-10 DFN-10 QFN-12 LGA-16 Maximum Acceleration (g) 2, 8 2, 8 1.5 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 8 2, 4, 8 Interface Bus Supply Current (Max.) (A) 900 600Hz 600Hz User Select. 1.563-800Hz 1.563-800Hz 1.563-800Hz

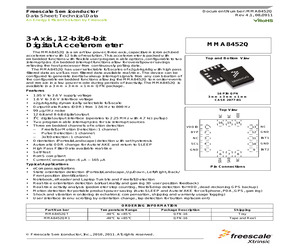

ensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, tap detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description Shipping MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel This document contains certain information on a new product. Specifications and information herein are subject to change without notice. (c) Freescale Semiconductor, Inc., 2010. All rights reserved. Contents Application Notes for Reference .............................................................................................................................................. 6 1 Block Diagram and Pin Description .................................................................................................................................. 6 1.1 Block Diagram ..........................................................................................................................................

ic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, pulse detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) 2010-2015 Freescale Semiconductor, Inc. All rights reserved. Shipping Contents 1 2 3 4 5 6 7 8 9 Block Diagram and Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mechanical and Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Mechanical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Electrical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, pulse detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) 2010-2013 Freescale Semiconductor, Inc. All rights reserved. Shipping Contents 1 2 3 4 5 6 Block Diagram and Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Soldering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Mechanical and Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Mechanical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

onic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, tap detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel This document contains certain information on a new product. Specifications and information herein are subject to change without notice. (c) Freescale Semiconductor, Inc., 2010. All rights reserved. Shipping Contents Application Notes for Reference .............................................................................................................................................. 6 1 Block Diagram and Pin Description .................................................................................................................................. 6 1.1 Block Diagram .................................................................................................................................

onic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, tap detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) Freescale Semiconductor, Inc., 2010, 2011. All rights reserved. Shipping Contents 1 2 3 4 5 6 Block Diagram and Pin Description .................................................................................................................................. 3 1.1 Soldering Information .................................................................................................................................................. 5 Mechanical and Electrical Specifications ......................................................................................................................... 6 2.1 Mechanical Characteristics ..........................................................................

ic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, pulse detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) 2012 Freescale Semiconductor, Inc. All rights reserved. Shipping Contents 1 2 3 4 5 6 Block Diagram and Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Soldering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Mechanical and Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Mechanical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

onic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, tap detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) Freescale Semiconductor, Inc., 2010, 2011. All rights reserved. Shipping Contents 1 2 3 4 5 6 Block Diagram and Pin Description .................................................................................................................................. 3 1.1 Soldering Information .................................................................................................................................................. 5 Mechanical and Electrical Specifications ......................................................................................................................... 6 2.1 Mechanical Characteristics ..........................................................................

ensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, tap detection for button replacement) ORDERING INFORMATION Part Number Temperature Range Package Description Shipping MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel This document contains certain information on a new product. Specifications and information herein are subject to change without notice. (c) Freescale Semiconductor, Inc., 2010. All rights reserved. Contents Application Notes for Reference .............................................................................................................................................. 6 1 Block Diagram and Pin Description .................................................................................................................................. 6 1.1 Block Diagram ..........................................................................................................................................

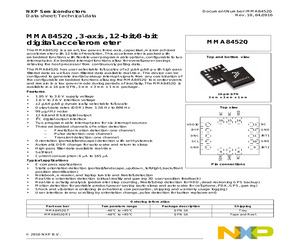

ic compensation, shipping and warranty usage logging) * User interface (menu scrolling by orientation change, pulse detection for button replacement) Ordering information Part number Temperature range Package description MMA8452QT -40C to +85C QFN-16 Tray MMA8452QR1 -40C to +85C QFN-16 Tape and Reel (c) 2016 NXP B.V. Shipping Contents 1 2 3 4 5 6 7 8 9 Block Diagram and Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Mechanical and Electrical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
