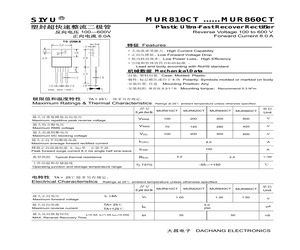

stics Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current 8.3ms Peak forward surge current 8.3 ms single half sine-wave Operating junction and storage temperature range MUR820CT MUR840CT MUR860CT VRRM 100 200 400 600 V VRMS 70 140 280 420 V VDC 100 200 400 600 V Unit IF(AV) 8.0 A IFSM 100 A RJC Typical thermal resistance Ratings at 25 ambient temperature unless otherwise specified. MUR810CT Symbols Mounting Position: Any 3.0 /W 2.0 -55---+150 Tj, TSTG TA = 25 Electrical Characteristics Ratings at 25 ambient temperature unless otherwise specified. Symbols IF =4A Maximum forward voltage TA= 25 Maximum reverse current TA=125 IF=0.5A IR=1.0A IREC=0.25A MAX. Reverse Recovery Time VF MUR810CT MUR820CT MUR860CT 1.30 1.50 1.00 5.0 250 IR trr MUR840CT 35 Unit V A 50 nS DACHANG ELECTRONICS SIYU R MUR810CT ...... MUR860CT Characteristic Curves TYPICAL FORWARD CHARACTERISTIC FORWARD CURRENT DERATING CURVE 12 IF(AV) (A)

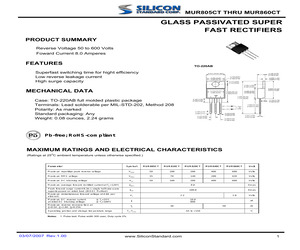

MIL-STD-202, Method 208 Polarity: As marked Standard packaging: Any Weight: 0.08 ounces, 2.24 grams Maximum Ratings and Electrical Characteristics Ratings at 25oC ambient temperature unless otherwise specified. Parameter Symbol MUR805CT MUR810CT MUR820CT MUR840CT MUR860CT Unit Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 Volts Maximum RMS voltage VRMS 35 70 140 280 420 Volts Maximum DC blocking voltage V DC 50 100 200 400 600 Volts o Maximum average forward rectified current at TC=120 C IF(AV) 8.0 Amps Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 100.0 Amps Maximum instantaneous forward voltage at 4.0A per element VF Maximum DC reverse current at rated DC blocking voltage @TJ=25oC @TJ=100oC Notes: 2.8 10.0 800 IR Maximum reverse recovery time at IF=0.5A, IR=1.0A, Irr=0.25A Operating junction and storage temperature range 2.2 trr 30 TJ, TSTG 1. Pulse test: Pulse width 300 usec, Duty cycle 2% 263 uA 50 -55 to +150 Volts nS

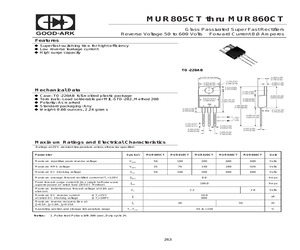

arity: As marked Standard packaging: Any Weight: 0.08 ounces, 2.24 grams Pb-free; RoHS-compliant MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS o (Ratings at 25 C ambient temperature unless otherwise specified.) Parameter Symbol MUR805CT MUR810CT MUR820CT MUR840CT MUR860CT Unit Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 Volts Maximum RMS voltage VRMS 35 70 140 280 420 Volts Maximum DC blocking voltage V DC 50 100 200 400 600 Volts o Maximum average forward rectified current at TC=120 C IF(AV) 8.0 Amps Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 100.0 Amps Maximum instantaneous forward voltage at 4.0A per element VF Maximum DC reverse current at rated DC blocking voltage @TJ=25oC @TJ=100oC trr Operating junction and storage temperature range 2.8 10.0 800 IR Maximum reverse recovery time at IF=0.5A, IR=1.0A, Irr=0.25A Notes: 2.2 30 TJ, TSTG uA 50 -55 to +150 Volts nS o C 1. Pulse test: Pulse width 300 usec, Duty cycle 2%
