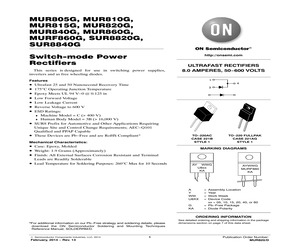

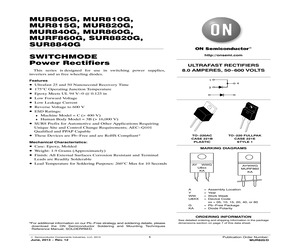

MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G Preferred Devices SWITCHMODE Power Rectifiers http://onsemi.com This series are state-of-the-art devices designed for use in switching power supplies, inverters and as free wheeling diodes. ULTRAFAST RECTIFIERS 8.0 AMPERES, 50-600 VOLTS Features 1 Ultrafast 25 and 50 Nanosecond Recovery Time 175C Operating Junction Temperature Epoxy Meets UL 94 V-0 @ 0.125 in Low Forward Voltage Low Leakage Current Reverse Voltage to 600 V ESD Ratings: Machine Model = C (> 400 V) Human Body Model = 3B (> 16,000 V) AEC-Q101 Qualified and PPAP Capable SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements All Packages are Pb-Free* Mechanical Characteristics: 4 3 TO-220AC CASE 221B PLASTIC Case: Epoxy, Molded Weight: 1.9 Grams (Approximately) Finish: All External Surfaces Corrosion Resistant and Terminal TO-220 FULLPAK CASE 221E STYLE 1 MARKING DIAGRAMS Leads are Readily Solderable Lead Temperature for Soldering Purposes:

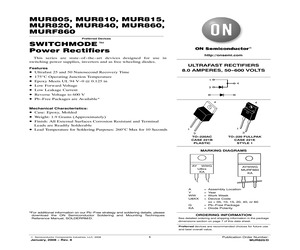

MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G http://onsemi.com Switch-mode Power Rectifiers This series is designed for use in switching power supplies, inverters and as free wheeling diodes. ULTRAFAST RECTIFIERS 8.0 AMPERES, 50-600 VOLTS Features * * * * * * * * * 1 Ultrafast 25 and 50 Nanosecond Recovery Time 175C Operating Junction Temperature Epoxy Meets UL 94 V-0 @ 0.125 in Low Forward Voltage Low Leakage Current Reverse Voltage to 600 V ESD Ratings: Machine Model = C (> 400 V) Human Body Model = 3B (> 16,000 V) SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb-Free and are RoHS Compliant* Mechanical Characteristics: 4 3 TO-220AC CASE 221B STYLE 1 * Case: Epoxy, Molded * Weight: 1.9 Grams (Approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal * Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260C Max for 10 Seconds TO-220 FULLPAK CA

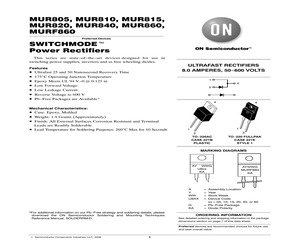

MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G SWITCHMODE Power Rectifiers http://onsemi.com This series is designed for use in switching power supplies, inverters and as free wheeling diodes. ULTRAFAST RECTIFIERS 8.0 AMPERES, 50-600 VOLTS Features * * * * * * * * * 1 Ultrafast 25 and 50 Nanosecond Recovery Time 175C Operating Junction Temperature Epoxy Meets UL 94 V-0 @ 0.125 in Low Forward Voltage Low Leakage Current Reverse Voltage to 600 V ESD Ratings: Machine Model = C (> 400 V) Human Body Model = 3B (> 16,000 V) SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb-Free and are RoHS Compliant* Mechanical Characteristics: 4 3 TO-220AC CASE 221B PLASTIC * Case: Epoxy, Molded * Weight: 1.9 Grams (Approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal TO-220 FULLPAK CASE 221E STYLE 1 MARKING DIAGRAMS Leads are Readily Solderable * Lead Temperature for Soldering Pu

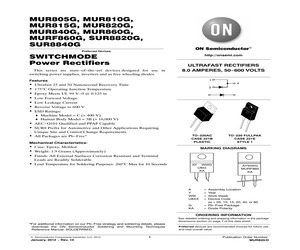

MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G http://onsemi.com Switch-mode Power Rectifiers This series is designed for use in switching power supplies, inverters and as free wheeling diodes. ULTRAFAST RECTIFIERS 8.0 AMPERES, 50-600 VOLTS Features * * * * * * * * * 1 Ultrafast 25 and 50 Nanosecond Recovery Time 175C Operating Junction Temperature Epoxy Meets UL 94 V-0 @ 0.125 in Low Forward Voltage Low Leakage Current Reverse Voltage to 600 V ESD Ratings: Machine Model = C (> 400 V) Human Body Model = 3B (> 16,000 V) SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb-Free and are RoHS Compliant* Mechanical Characteristics: 4 3 TO-220AC CASE 221B STYLE 1 * Case: Epoxy, Molded * Weight: 1.9 Grams (Approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal * Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260C Max for 10 Seconds TO-220 FULLPAK CA

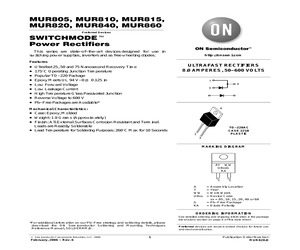

MUR840G, MUR860G, MURF860G, SUR8820G, SUR8840G http://onsemi.com Switch-mode Power Rectifiers This series is designed for use in switching power supplies, inverters and as free wheeling diodes. ULTRAFAST RECTIFIERS 8.0 AMPERES, 50-600 VOLTS Features * * * * * * * * * 1 Ultrafast 25 and 50 Nanosecond Recovery Time 175C Operating Junction Temperature Epoxy Meets UL 94 V-0 @ 0.125 in Low Forward Voltage Low Leakage Current Reverse Voltage to 600 V ESD Ratings: Machine Model = C (> 400 V) Human Body Model = 3B (> 16,000 V) SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable These Devices are Pb-Free and are RoHS Compliant* Mechanical Characteristics: 4 3 TO-220AC CASE 221B STYLE 1 * Case: Epoxy, Molded * Weight: 1.9 Grams (Approximately) * Finish: All External Surfaces Corrosion Resistant and Terminal * Leads are Readily Solderable Lead Temperature for Soldering Purposes: 260C Max for 10 Seconds TO-220 FULLPAK CA
