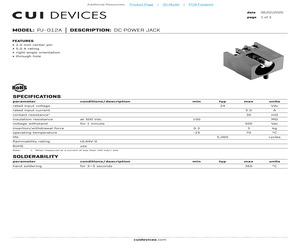

PJ-012A DESCRIPTION: DC POWER JACK FEATURES * * * * 2.0 mm center pin 5.0 A rating right-angle orientation through hole SPECIFICATIONS parameter conditions/description min rated input voltage typ max 24 units Vdc rated input current 5.0 A contact resistance1 30 m 500 Vac insulation resistance at 500 Vdc voltage withstand for 1 minute 100 M insertion/withdrawal force 0.3 3 kg operating temperature -25 70 C life 5,000 flammability rating UL94V-0 RoHS yes Note: cycles 1. When measured at a current of less than 100 mA/1 kHz SOLDERABILITY parameter conditions/description hand soldering for 3~5 seconds min cuidevices.com typ max units 360 C Additional Resources: Product Page | 3D Model | PCB Footprint CUI Devices MODEL: PJ-012A DESCRIPTION: DC POWER JACK date 06/02/2020 page 2 of 3 MECHANICAL DRAWING units: mm[inches] tolerance: 0.3 mm unless otherwise noted MATERIAL PLATING center pin copper nickel terminal 1 brass silver terminal 2 titanium copper alloy silver terminal 3 brass silver pla

PJ-012A PC FILE NAME: 1.8 0.071 1.5 0.059 2 3 1 6.5 0.256 1.0 0.039 (2 PLCS) 3.3 0.130 7.0 0.276 1 3 2 COPYRIGHT 2006 BY CUI INC. 1.3 0.051 3.5 0.138 3.8 0.150 0.5 0.020 CENTER PIN DIAMETER 2.0mm SCHEMATIC PJ-012A PCB LAYOUT TOP VIEW 9.0 0.354 8.6 0.339 (2 PLCS) 4.5 0.177 MODEL NO. 3.7 0.146 4.0 0.157 2.0 0.079 6.6 0.260 11.0 0.433 8.6 0.339 (2 PLCS) 9.0 0.354 1 3 2 1.00X5.90 (2 PLCS) Titanium Copper Alloy Brass PBT TERMINAL 2 TERMINAL 3 HOUSING Copper Brass MATERIAL CENTER PIN TERMINAL 1 Nickel Silver Silver Silver PLATING 8.3 0.327 5.0 0.197 1.0 0.039 SPECIFICATIONS: RATING: 16V DC @ 2A CONTACT RESISTANCE: 30m OHMS MAX INSULATION RESISTANCE: 100M OHMS MIN: 500V DC VOLTAGE WITHSTAND: 500V AC R.M.S. FOR 1 MINUTE LIFE: 5,000 CYCLES OPERATING TEMP: -20 ~ +85C 1.5 0.059 8.7 0.343 1.5 0.059 3.5 0.138 1.0 0.039 11.5 0.453 REV. A ZRJ DRAWN BY: PJ-012A DC POWER JACK PART NO. TITLE: APPROVED BY: UNITS: DATE 5/17/2006 3:1 A SCALE: MM [INCHES] REV: RoHS 9615 SW Allen Blvd., Ste. 1

PJ-012A PC FILE NAME: 1.8 0.071 1.5 0.059 2 3 1 6.5 0.256 1.0 0.039 (2 PLCS) 3.3 0.130 7.0 0.276 1 3 2 COPYRIGHT 2006 BY CUI INC. 1.3 0.051 3.5 0.138 3.8 0.150 0.5 0.020 CENTER PIN DIAMETER 2.0mm SCHEMATIC PJ-012A PCB LAYOUT TOP VIEW 9.0 0.354 8.6 0.339 (2 PLCS) 4.5 0.177 MODEL NO. 3.7 0.146 4.0 0.157 2.0 0.079 6.6 0.260 11.0 0.433 8.6 0.339 (2 PLCS) 9.0 0.354 1 3 2 1.00X5.90 (2 PLCS) Titanium Copper Alloy Brass PBT TERMINAL 2 TERMINAL 3 HOUSING Copper Brass MATERIAL CENTER PIN TERMINAL 1 Nickel Silver Silver Silver PLATING 8.3 0.327 5.0 0.197 1.0 0.039 SPECIFICATIONS: RATING: 16V DC @ 2A CONTACT RESISTANCE: 30m OHMS MAX INSULATION RESISTANCE: 100M OHMS MIN: 500V DC VOLTAGE WITHSTAND: 500V AC R.M.S. FOR 1 MINUTE LIFE: 5,000 CYCLES OPERATING TEMP: -20 ~ +85C 1.5 0.059 8.7 0.343 1.5 0.059 3.5 0.138 1.0 0.039 11.5 0.453 REV. A ZRJ DRAWN BY: PJ-012A DC POWER JACK PART NO. TITLE: APPROVED BY: UNITS: DATE 5/17/2006 3:1 A SCALE: MM [INCHES] REV: RoHS 9615 SW Allen Blvd., Ste. 1

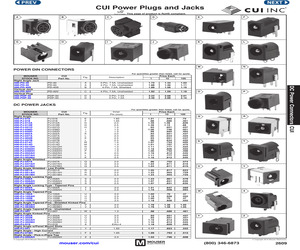

DC Power Connectors CUI MOUSER STOCK NO. Right Angle Jack 490-PD-30 490-PD-40 490-PD-40S Vertical Jack 490-PD-40V Vertical Plug 490-PDP-30 490-PDP-40 DC POWER JACKS MOUSER CUI Fig. STOCK NO. Part No. Right Angle 490-PJ-016 PJ-016 E 490-PJ-018 PJ-018 F 490-PJ-012A PJ-012A G 490-PJ-012B PJ-012B G 490-PJ-031D PJ-031D H 490-PJ-036D PJ-036D I 490-PJ-040D PJ-040D J 490-PJ-002A PJ-002A K 490-PJ-037A PJ-037A L 490-PJ-002B PJ-002B K 490-PJ-037B PJ-037B L 490-PJ-014C PJ-014C M 490-PJ-014D PJ-014D M 490-PJ-031DH PJ-031DH N 490-PJ-035DH PJ-035DH O 490-PJ-040DH PJ-040DH P 490-PJ-002AH PJ-002AH K 490-PJ-037AH PJ-037AH L 490-PJ-002BH PJ-002BH K Right Angle Shielded 490-PJ-047A PJ-047A Q 490-PJ-047AH PJ-047AH Q 490-PJ-047BH PJ-047BH Q Right Angle Shielded - Low Profile 490-PJ-051A PJ-051A R 490-PJ-051AH PJ-051AH R 490-PJ-051BH PJ-051BH R Right Angle Locking Type 490-PJ-058A PJ-058A S 490-PJ-058AH PJ-058AH S 490-PJ-058BH PJ-058BH S Right Angle Locking Type - Tapered Pins 490-PJ-059A PJ-059A T 490-PJ-

_ wo NO. | DESCRIPTION | MATERIAL QTY | FINISH fo) ; 1 0 FE Le 3 PF cul inc 9 J 9615 SW Allen, Suite 103 io % Pate Wedd 948 2080 0.5 [0.020] 10.3 re, (008) 275-4899" 3.5 [0.138] 3.8 [0.150] / Pex: ites 08) are aes HOLE LAYOUT "___DC POWER JACK (TOP. VIEW) PJ-012A MM_ [INCHES] PC FILE NAME: DRAWN BY: APPROVED BY: SCALE: PJ012A.DWG COPYRIGHT 1997 BY CUI INC. Todd R. White 3X
