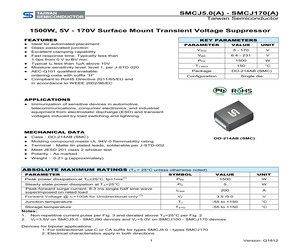

SMCJ5.0(A) - SMCJ170(A) Taiwan Semiconductor 1500W, 5V - 170V Surface Mount Transient Voltage Suppressor FEATURES KEY PARAMETERS Ideal for automated placement Glass passivated junction Excellent clamping capability Fast response time: Typically less than 1.0ps from 0 V to BV min Typical IR less than 1A above 10V Moisture sensitivity level: level 1, per J-STD-020 AEC-Q101 qualified available: ordering code with suffix "H" RoHS Compliant Halogen-free according to IEC 61249-2-21 PARAMETER VALUE UNIT VWM 5 - 170 V VBR 6.4 - 231 V PPK 1500 W TJ MAX 150 C Package DO-214AB (SMC) Configuration Single die APPLICATIONS Immunization of sensitive devices in automotive, telecommunications, consumer electronics, and industrial equipment from electrostatic discharge (ESD) and transient voltages induced by load switching and lightning. MECHANICAL DATA CaseDO-214AB (SMC) Molding compound meets UL 94V-0 flammability rating TerminalMatte tin plated leads, solderable per J-STD-002 Meet JESD 201 class 2 whisker test PolarityAs ma

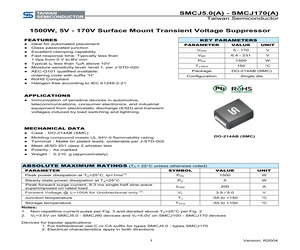

SMCJ5.0(A) - SMCJ170(A) Taiwan Semiconductor 1500W, 5V - 170V Surface Mount Transient Voltage Suppressor FEATURES KEY PARAMETERS Ideal for automated placement Glass passivated junction Excellent clamping capability Fast response time: Typically less than 1.0ps from 0 V to BV min Typical IR less than 1A above 10V Moisture sensitivity level: level 1, per J-STD-020 AEC-Q101 qualified available: ordering code with suffix "H" Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC PARAMETER VALUE UNIT VWM 5 - 170 V VBR 6.4 - 231 V PPK 1500 W TJ MAX 150 C Package DO-214AB (SMC) Configuration Single die APPLICATIONS Immunization of sensitive devices in automotive, telecommunications, consumer electronics, and industrial equipment from electrostatic discharge (ESD) and transient voltages induced by load switching and lightning. MECHANICAL DATA CaseDO-214AB (SMC) Molding compound meets UL 94V-0 flammability rating TerminalMatte tin plated leads, solderable per J-STD-002 Meet JESD 201 class 2 whiske
