Product Datasheet Search Results:

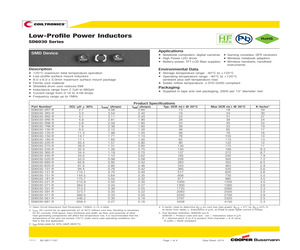

4 Pages, 526 KB, Original- SD6030-680-R
- Cooper Industries
- 1 ELEMENT, 68 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
4 Pages, 601 KB, Original- SD6030-680-R
- Eaton Bussmann
- FIXED IND 65.6UH 920MA 355 MOHM
3 Pages, 258 KB, Original- SD6030-680-R
- Eaton
- SD6030 Series 68 uH ±30 % 920 mA 263 mΩ Shielded Surface Mount Power Inductor
Product Details Search Results:
Cooperbussmann.com/SD6030-680-R
{"Terminal Finish":"NOT SPECIFIED","Inductance-Nom (L)":"68 uH","Operating Temperature-Max":"125 Cel","Tolerance":"30 %","Status":"ACTIVE","Lead Free":"Yes","Test Frequency (at L-nom)":"0.1000 MHz","Operating Temperature-Min":"-40 Cel","Core Material":"FERRITE","Number of Functions":"1","Inductor Application":"POWER INDUCTOR","Shape/Size Description":"RECTANGULAR PACKAGE","DC Resistance":"0.3550 ohm","EU RoHS Compliant":"Yes","Terminal Placement":"DUAL ENDED","Shielded":"Yes","Terminal Shape":"WRAPAROUND","...
1399 Bytes - 07:12:21, 13 January 2026
Cooperindustries.com/SD6030-680-R
{"Category":"Inductors, Coils, Chokes","Current Rating":"920mA","Catalog Drawings":"SD6030 Series","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Package / Case":"Nonstandard","Current - Saturation":"520mA","Type":"Wirewound","Shielding":"Shielded","DC Resistance (DCR)":"355 mOhm Max","Height - Seated (Max)":"0.118\" (3.00mm)","Tolerance":"\u00b130%","Datasheets":"SD6030 Series","Inductance":"65.6\u00b5H","Standard Package":"2,000","Family":"Fixed Inductors","Size / Dimension":"0.236\" L x 0.236\" W (6....
1896 Bytes - 07:12:21, 13 January 2026
Eaton.com/SD6030-680-R
{"Case Size/Dimension":"6.2 x 6.2 x 3 mm","Inductance-Nom":"68 \u00b5H","Shielding":"Yes","Rated Current-Max":"920 mA","Tolerance (%)":"\u00b130 %","DC Resistance":"263 m\u03a9"}...
1075 Bytes - 07:12:21, 13 January 2026
