Product Datasheet Search Results:
1 Pages, 129 KB, Scan- 09651626812
- Harting
- D-Sub Connector Plug, Male Pins 9 Position Through Hole, Right Angle Solder
1 Pages, 129 KB, Scan- 09651626812
- Harting Technology Group
- Conn D-Subminiature PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port
Product Details Search Results:
Harting.com/09651626812

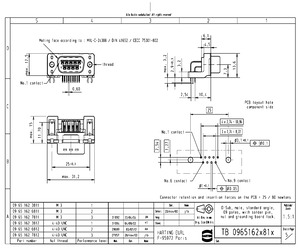

{"Category":"Connectors, Interconnects","Shell Size, Connector Layout":"1 (DE, E)","Flange Feature":"Housing/Shell (4-40)","Current Rating":"-","Housing Material":"Polybutylene Terephthalate (PBT), Polyester, Glass Filled","Operating Temperature":"-55\u00b0C ~ 125\u00b0C","Connector Style":"D-Sub","Contact Finish Thickness":"-","Number of Positions":"9","Product Photos":"09651626812","Datasheets":"0965162x81(1,2) Drawing","Number of Rows":"2","Standard Package":"1","Family":"D-Sub Connectors","Voltage Ratin...
2058 Bytes - 00:25:26, 15 January 2026
Harting_technology_group/09651626812
{"Mounting Style":"Through Hole","Contact Pitch (mm)":"1.37(mm)","Current Rating":"6.5(A)","Number of Terminals":"9","Body Orientation":"Right Angle","Termination Method":"Solder","Rad Hardened":"No","Plug / Receptacle":"PIN","Product Length (mm)":"31.2(mm)","Housing Material":"Steel","Number of Ports":"1(Port)","Operating Temp Range":"-55C to 125C","Contact Plating":"Gold","Number of Contact Rows":"2","Number of Contacts":"9(POS)","Type":"D-Subminiature","Product Height (mm)":"13.6(mm)","Shell Plating":"Ti...
1654 Bytes - 00:25:26, 15 January 2026
