Product Datasheet Search Results:

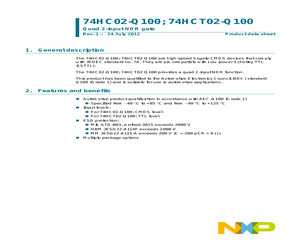

15 Pages, 760 KB, Original- 74HC02D-Q100,118
- Nexperia
- NOR Gate 4-Element 2-IN CMOS Automotive 14-Pin SO T/R
15 Pages, 225 KB, Original- 74HC02D-Q100
- Nxp
- HC/UH SERIES, QUAD 2-INPUT NOR GATE, PDSO14
15 Pages, 225 KB, Original- 74HC02D-Q100,118
- Nxp
- LOGIC, NOR GATE, QUAD, 2 I/P, SOIC-14
Product Details Search Results:
Nexperia/74HC02D-Q100,118
{"Number of Inputs":"2-IN","Mounting":"Surface Mount","Logic Family":"HC","High Level Output Current":"-5.2(mA)","Operating Temperature Classification":"Automotive","Package Type":"SO","Operating Supply Voltage (Max)":"6(V)","Propagation Delay Time":"90@2V/18@4.5V/15@6V(ns)","Quiescent Current":"2(uA)","Number of Outputs":"1","Number of Output Enables per Element":"0","Logical Function":"NOR","Operating Supply Voltage (Min)":"2(V)","Low Level Output Current":"5.2(mA)","Operating Temp Range":"-40C to 125C","...
1692 Bytes - 04:27:29, 17 January 2026
Nxp.com/74HC02D-Q100
{"Terminal Finish":"NOT SPECIFIED","Terminal Pitch":"1.27 mm","Number of Inputs":"2","Terminal Form":"GULL WING","Operating Temperature-Max":"125 Cel","Supply Voltage-Nom (Vsup)":"5 V","Temperature Grade":"AUTOMOTIVE","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Operating Temperature-Min":"-40 Cel","Package Body Material":"PLASTIC/EPOXY","Propagation Delay (tpd)":"135 ns","Number of Functions":"4","Logic IC Type":"NOR","EU RoHS Compliant":"Yes","Supply Voltage-Max (Vsup)":"6 V","China ...
1449 Bytes - 04:27:29, 17 January 2026
Nxp.com/74HC02D-Q100,118
{"Category":"Integrated Circuits (ICs)","Number of Inputs":"2","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Package / Case":"14-SOIC (0.154\", 3.90mm Width)","Product Photos":"14-SOIC-SOT108-1","Current - Quiescent (Max)":"2\u00b5A","Datasheets":"74HC(T)02-Q100","Max Propagation Delay @ V, Max CL":"15ns @ 6V, 50pF","Standard Package":"2,500","Number of Circuits":"4","Logic Level - High":"1.5 V ~ 4.2 V","Features":"-","Online Catalog":"74HC","Mounting Type":"Surface Mount","Family":"Logic - Gates and I...
1823 Bytes - 04:27:29, 17 January 2026
