Product Datasheet Search Results:

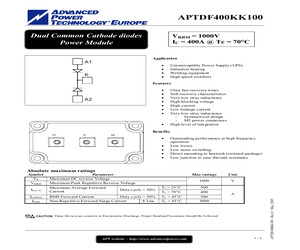

APTDF400KK100.pdf4 Pages, 238 KB, Original
APTDF400KK100
Advanced Power Technology
Dual Common Cathode diodes Power Module
APTDF400KK100.pdf4 Pages, 238 KB, Original
APTDF400KK100
Microsemi Corp.
500 A, 1000 V, SILICON, RECTIFIER DIODE
APTDF400KK100G.pdf5 Pages, 462 KB, Original
APTDF400KK100G
Microsemi Power Products Group
DIODE MODULE 1KV 500A SP6

Product Details Search Results:

Microsemi.com/APTDF400KK100
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"UNSPECIFIED","Mfr Package Description":"MODULE-3","Terminal Form":"UNSPECIFIED","Package Style":"FLANGE MOUNT","Rep Pk Reverse Voltage-Max":"1000 V","Number of Phases":"1","Diode Element Material":"SILICON","Application":"ULTRA FAST SOFT RECOVERY POWER","Average Forward Current-Max":"500 A","Case Connection":"ISOLATED","Non-rep Pk Forward Current-Max":"3000 A","Terminal Position":"UPPER","Diode Type":"RECTIFIER DIODE","Package Shape":"...
1355 Bytes - 15:50:34, 12 January 2026
Microsemi.com/APTDF400KK100G
{"Category":"Discrete Semiconductor Products","Packaging":"Bulk","Current - Average Rectified (Io) (per Diode)":"500A","Voltage - Forward (Vf) (Max) @ If":"2.7V @ 400A","Family":"Diodes, Rectifiers - Modules","Series":"-","Diode Configuration":"1 Pair Common Cathode","Standard Package":"1","Supplier Device Package":"SP6","Reverse Recovery Time (trr)":"290ns","Datasheets":"APTDF400KK100G Power Products Catalog","Current - Reverse Leakage @ Vr":"250\u00b5A @ 1000V","Package / Case":"LP4","Voltage - DC Reverse...
1665 Bytes - 15:50:34, 12 January 2026
