Product Datasheet Search Results:

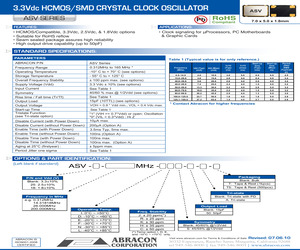

2 Pages, 754 KB, Original- ASV-100.000MHZ-EC
- Abracon Corporation
- CRYSTAL OSCILLATOR, CLOCK, 100 MHz, HCMOS/TTL OUTPUT
1 Pages, 99 KB, Original- ASV-100.000MHZ-EC-T
- Abracon Llc
- OSC XO 100.000MHZ HCMOS SMD
2 Pages, 754 KB, Original- ASV-100.000MHZ-EC-T5
- Abracon Corporation
- CRYSTAL OSCILLATOR, CLOCK, 100 MHz, HCMOS/TTL OUTPUT
Product Details Search Results:
Abracon.com/ASV-100.000MHZ-EC
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Mounting Feature":"SURFACE MOUNT","Mfr Package Description":"ROHS COMPLIANT, SMD, 4 PIN","Operating Temperature-Min":"-20 Cel","Frequency Adjustment-Mechanical":"0","Physical Dimension":"L7.0XB5.08XH1.8 (mm)/L0.276XB0.2XH0.071 (inch)","Operating Frequency-Nom":"100 MHz","Rise Time-Max":"4 ns","Operating Temperature-Max":"70 Cel","Oscillator Type":"HCMOS/TTL","Symmetry-Max":"0.6667 %","China RoHS Compliant":"Yes","Supply Voltage-Max":"3....
1438 Bytes - 07:05:37, 13 January 2026
Abracon.com/ASV-100.000MHZ-EC-T
{"Category":"Crystals and Oscillators","Ratings":"-","Catalog Drawings":"ASV Series Side 2 ASV Series Side 1 ASV Series Bottom ASV Series Top ASV Series Footprint","Frequency Stability":"\u00b150ppm","Operating Temperature":"-20\u00b0C ~ 70\u00b0C","Package / Case":"4-SMD, No Lead (DFN, LCC)","Type":"XO (Standard)","Function":"Tri-State (Output Enable)","Product Photos":"ASV SERIES","Datasheets":"ASV Series ASV Drawing","Current - Supply (Max)":"50mA","Standard Package":"1,000","Size / Dimension":"0.276\" L...
2124 Bytes - 07:05:37, 13 January 2026
Abracon.com/ASV-100.000MHZ-EC-T5
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Mounting Feature":"SURFACE MOUNT","Mfr Package Description":"ROHS COMPLIANT, SMD, 4 PIN","Operating Temperature-Min":"-20 Cel","Frequency Adjustment-Mechanical":"0","Physical Dimension":"L7.0XB5.08XH1.8 (mm)/L0.276XB0.2XH0.071 (inch)","Operating Frequency-Nom":"100 MHz","Rise Time-Max":"4 ns","Operating Temperature-Max":"70 Cel","Oscillator Type":"HCMOS/TTL","Symmetry-Max":"0.6667 %","China RoHS Compliant":"Yes","Supply Voltage-Max":"3....
1458 Bytes - 07:05:37, 13 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|
| JASV-LEB06-01S.pdf | 2.70 | 1 | Request | |
| JASV-LEA06-01S.pdf | 2.70 | 1 | Request | |
| JASV-LEB07-N01.pdf | 2.70 | 1 | Request | |
| JASV-LEA04-M5.pdf | 2.70 | 1 | Request | |
| JASV-LEA23-M5.pdf | 2.70 | 1 | Request |
