Product Datasheet Search Results:
3 Pages, 314 KB, Scan- BC239C
- Advani-oerlikon Ltd.
- Silicon Transistor Guide

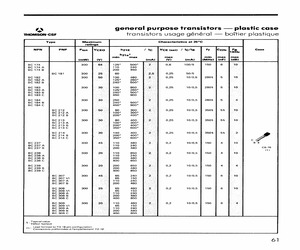

1 Pages, 77 KB, Scan- BC239C
- Thomson-csf
- Shortform Semiconductor Catalogue 1982
1 Pages, 108 KB, Scan- BC239C
- Continental Device India Limited
- Semiconductor Device Data Book 1996
1 Pages, 56 KB, Original- BC239C
- Central Semiconductor Corp.
- 100 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
36 Pages, 3192 KB, Scan- BC239C
- Crimson Semiconductor
- Transistor Selection Guide

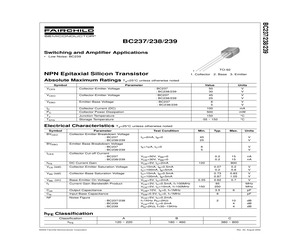

4 Pages, 43 KB, Original- BC239C
- Fairchild Semiconductor
- NPN Epitaxial Silicon Transistor
4 Pages, 43 KB, Original- BC239CBU
- Fairchild Semiconductor
- TRANS NPN 25V 0.1A TO-92
4 Pages, 43 KB, Original- BC239CTA
- Fairchild Semiconductor
- TRANS NPN 25V 0.1A TO-92
2 Pages, 354 KB, Original- BC239C
- Kec Corporation
- 50 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92
Product Details Search Results:
Centralsemi.com/BC239C
{"Status":"ACTIVE","Terminal Finish":"TIN LEAD","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"TO-92-18R, 3 PIN","Terminal Form":"THROUGH-HOLE","Power Dissipation Ambient-Max":"0.3000 W","Package Style":"CYLINDRICAL","DC Current Gain-Min (hFE)":"380","Collector-emitter Voltage-Max":"20 V","Transistor Application":"AMPLIFIER","Transition Frequency-Nom (fT)":"150 MHz","Collector Current-Max (IC)":"0.1000 A","Transistor Element Material":"SILICON","Terminal Position":"BOTTOM","Transistor Po...
1373 Bytes - 15:36:24, 05 January 2026
Fairchildsemi.com/BC239CBU
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","Frequency - Transition":"250MHz","Transistor Type":"NPN","Product Photos":"TO-92-3(StandardBody),TO-226_straightlead","Family":"Transistors (BJT) - Single","Vce Saturation (Max) @ Ib, Ic":"600mV @ 5mA, 100mA","Supplier Device Package":"TO-92-3","Series":"-","Package / Case":"TO-226-3, TO-92-3 (TO-226AA)","PCN Design/Specification":"Copper Lead Frame 12/Oct/2007","Voltage - Collector Emitter Breakdown (Max)":"25V","Packag...
1672 Bytes - 15:36:24, 05 January 2026
Fairchildsemi.com/BC239CTA
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","Frequency - Transition":"250MHz","Transistor Type":"NPN","Product Photos":"TO-92-3(StandardBody),TO-226_straightlead","Family":"Transistors (BJT) - Single","Vce Saturation (Max) @ Ib, Ic":"600mV @ 5mA, 100mA","Supplier Device Package":"TO-92-3","Series":"-","Package / Case":"TO-226-3, TO-92-3 (TO-226AA) Formed Leads","PCN Design/Specification":"Copper Lead Frame 12/Oct/2007","Voltage - Collector Emitter Breakdown (Max)":...
1696 Bytes - 15:36:24, 05 January 2026
Freescale.com/BC239C18
{"@I(C) (A) (Test Condition)":"2.0m","I(CBO) Max. (A)":"15n","Absolute Max. Power Diss. (W)":"350m","I(C) Abs.(A) Collector Current":"100m","@V(CE) (V) (Test Condition)":"5.0","f(T) Min. (Hz) Transition Freq":"150M","V(BR)CEO (V)":"25","Package":"TO-18","h(FE) Min. Static Current Gain":"380","Military":"N","C(obo) (Max) (F)":"4.5p"}...
793 Bytes - 15:36:24, 05 January 2026
Freescale.com/BC239C5
{"@I(C) (A) (Test Condition)":"2.0m","I(CBO) Max. (A)":"15n","Absolute Max. Power Diss. (W)":"350m","I(C) Abs.(A) Collector Current":"100m","@V(CE) (V) (Test Condition)":"5.0","f(T) Min. (Hz) Transition Freq":"150M","V(BR)CEO (V)":"25","Package":"TO-5","h(FE) Min. Static Current Gain":"380","Military":"N","C(obo) (Max) (F)":"4.5p"}...
787 Bytes - 15:36:24, 05 January 2026
Kec.co.kr/BC239C
{"Status":"DISCONTINUED","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"TO-92, 3 PIN","Terminal Form":"THROUGH-HOLE","Power Dissipation Ambient-Max":"0.6250 W","Package Style":"CYLINDRICAL","DC Current Gain-Min (hFE)":"380","Collector-emitter Voltage-Max":"20 V","Transistor Application":"AMPLIFIER","Transition Frequency-Nom (fT)":"250 MHz","Collector Current-Max (IC)":"0.0500 A","Transistor Element Material":"SILICON","Terminal Position":"BOTTOM","Transistor Polarity":"NPN","Package Shap...
1315 Bytes - 15:36:24, 05 January 2026
Onsemi.com/BC239C
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","DC Current Gain (hFE) (Min) @ Ic, Vce":"380 @ 2mA, 5V","Transistor Type":"NPN","Product Photos":"TO-92-3(StandardBody),TO-226_straightlead","Family":"Transistors (BJT) - Single","Vce Saturation (Max) @ Ib, Ic":"600mV @ 5mA, 100mA","Current - Collector Cutoff (Max)":"15nA","Series":"-","Standard Package":"5,000","Voltage - Collector Emitter Breakdown (Max)":"25V","Supplier Device Package":"TO-92-3","Packaging":"Bulk","Dat...
1662 Bytes - 15:36:24, 05 January 2026
Onsemi.com/BC239CG
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"100mA","DC Current Gain (hFE) (Min) @ Ic, Vce":"380 @ 2mA, 5V","Transistor Type":"NPN","Product Photos":"TO-92-3(StandardBody),TO-226_straightlead","Family":"Transistors (BJT) - Single","Vce Saturation (Max) @ Ib, Ic":"600mV @ 5mA, 100mA","Current - Collector Cutoff (Max)":"15nA","Series":"-","Standard Package":"5,000","Voltage - Collector Emitter Breakdown (Max)":"25V","Supplier Device Package":"TO-92-3","Packaging":"Bulk","Dat...
1662 Bytes - 15:36:24, 05 January 2026
Various/BC239C
Low Power, Low Noise, General Purpose, BC239C, Silicon, NPN, 300mW, 30V, 20V, 5V, 100mA, 125°C, 150MHz, 5, 420MIN, PHI, TO226...
594 Bytes - 15:36:24, 05 January 2026
Various/BC239C-92
Low Power, General Purpose, BC239C-92, Silicon, NPN, 600mW, 30V, 20V, 5V, 200mA, 150°C, 4.5, 450MIN, NSC, TO92...
583 Bytes - 15:36:24, 05 January 2026
Various/BC239CP
{"@I(C) (A) (Test Condition)":"2.0m","I(CBO) Max. (A)":"15n","Absolute Max. Power Diss. (W)":"300m","I(C) Abs.(A) Collector Current":"50m","@V(CE) (V) (Test Condition)":"5.0","f(T) Min. (Hz) Transition Freq":"300M","V(BR)CEO (V)":"20","Package":"TO-92","h(FE) Min. Static Current Gain":"500","Military":"N","C(obo) (Max) (F)":"4.5p"}...
779 Bytes - 15:36:24, 05 January 2026
