Product Datasheet Search Results:

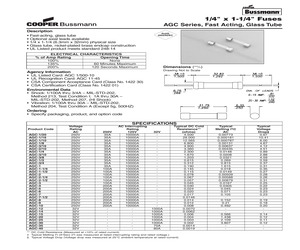

5 Pages, 304 KB, Original- BK/AGC-5-R
- Cooper Industries
- FAST BLOW ELECTRIC FUSE, 5A, 250VAC, 200A (IR), INLINE/HOLDER
2 Pages, 491 KB, Original- BK/AGC-5-R
- Eaton Bussmann
- FUSE GLASS 5A 250VAC 3AB 3AG
2 Pages, 159 KB, Original- BK/AGC-5-R
- Eaton
- Fast Acting Fuse 6.3 x 32 mm 250 VAC 5 A Glass Cartridge
Product Details Search Results:
Cooperbussmann.com/BK/AGC-5-R
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NICKEL","Mfr Package Description":"ROHS COMPLIANT","Body Height":"31.75 mm","Body Length or Diameter":"6.35 mm","Rated Current":"5 A","Electric Fuse Type":"ELECTRIC FUSE","Mounting Feature":"INLINE/HOLDER","Rated Breaking Capacity":"200 V","Terminal Shape":"END CAP","Rated Voltage(AC)":"250 V","Manufacturer Series":"AGC","EU RoHS Compliant":"Yes","Joule-integral-Nom":"0.0450 J","Blow Characteristic":"FAST"}...
1220 Bytes - 23:39:43, 13 January 2026
Cooperindustries.com/BK/AGC-5-R
{"Category":"Circuit Protection","Current Rating":"5A","Voltage Rating - AC":"250V","Catalog Drawings":"AGC-R, MDL-R Series","Breaking Capacity @ Rated Voltage":"200A","Operating Temperature":"-","Package / Case":"3AB, 3AG, 1/4\" x 1-1/4\"","Product Photos":"AGC Series Cylindrical","Approvals":"CSA, UL","Melting I\u00b2t":"0.045","Product Training Modules":"Selecting Fuses - Simple Procedures for Proper Overcurrent Protection of DC-DC Converters","Datasheets":"AGC Series","DC Cold Resistance":"0.024 Ohm","S...
3502 Bytes - 23:39:43, 13 January 2026
Eaton.com/BK/AGC-5-R
{"Size/Dimension":"6.3 x 32 mm","Response Characteristic":"Fast-Acting","Current Rating":"5 A","Working Voltage-Max":"250 V"}...
1231 Bytes - 23:39:43, 13 January 2026
