Product Datasheet Search Results:

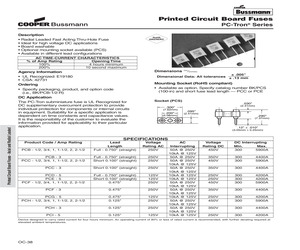

2 Pages, 135 KB, Original- BK/PCE-5-R
- Cooper Industries
- FAST BLOW ELECTRIC FUSE, 5A, 125VAC, 250VDC, 10000A (IR), THROUGH HOLE
3 Pages, 310 KB, Original- BK/PCE-5-R
- Bussmann / Eaton
- Fuses with Leads (Through Hole) PC TRON
2 Pages, 1235 KB, Original- BK/PCE-5-R
- Eaton
- Fuse Subminiature Fast Acting 5A 125V Radial 8.89 X 4.67 X 8.76mm Carton CSA/UL
Product Details Search Results:
Cooperbussmann.com/BK/PCE-5-R
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Mfr Package Description":"ROHS COMPLIANT","Rated Current":"5 A","Rated Voltage(DC)":"250 V","Electric Fuse Type":"ELECTRIC FUSE","Mounting Feature":"THROUGH HOLE","Rated Breaking Capacity":"10000 V","Terminal Shape":"PIN WIRE","Rated Voltage(AC)":"125 V","Manufacturer Series":"PC-TRON","EU RoHS Compliant":"Yes","Joule-integral-Nom":"5 J","Blow Characteristic":"FAST"}...
1204 Bytes - 04:37:20, 16 January 2026
Cooperindustries.com/BK/PCE-5-R
{"Category":"Circuit Protection","Current Rating":"5A","Voltage Rating - AC":"125V","Catalog Drawings":"PC(B,C,E)-R Series","Breaking Capacity @ Rated Voltage":"10kA AC, 4.2kA DC","Operating Temperature":"-","Package / Case":"Radial, Box","Product Photos":"PCB, PCD-SD (solder dipped) Series","Approvals":"CSA, UL","Melting I\u00b2t":"5","Product Training Modules":"Selecting Fuses - Simple Procedures for Proper Overcurrent Protection of DC-DC Converters","Datasheets":"PC-TRON Series","DC Cold Resistance":"-",...
2644 Bytes - 04:37:20, 16 January 2026
Eaton.com/BK/PCE-5-R
{"Current Rating":"5(A)","Voltage Rating (VDC)":"400(V)","Voltage Rating":"125","Mounting":"Through Hole","Product Height (mm)":"8.76(mm)","Fuse Size":"8.89 X 4.67 X 8.76","Termination Style":"Radial","Rad Hardened":"No","Terminal Pitch (mm)":"5.08(mm)","Product Length (mm)":"8.89(mm)","Packaging":"Carton","Operating Temperature Classification":"Military","Operating Temp Range":"-55C to 125C","Product Depth (mm)":"4.67(mm)","Product Diameter (mm)":"Not Required(mm)","Seated Plane Height":"8.76(mm)","Acting"...
1659 Bytes - 04:37:20, 16 January 2026
