Product Datasheet Search Results:
3 Pages, 171 KB, Original- DR1040-3R8-R
- Coiltronics
- Surface Mount Power Inductor, DR1040 Series, 3.8 µH, ± 30%, Shielded, 0.013 ohm, 5.5 A
3 Pages, 159 KB, Original- DR1040-3R8-R
- Cooper Industries
- 1 ELEMENT, 3.8 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
5 Pages, 445 KB, Original- DR1040-3R8-R
- Eaton Bussmann
- FIXED IND 3.8UH 5.5A 13 MOHM SMD
5 Pages, 445 KB, Original- DR1040-3R8-R
- Eaton
- DR1040 Series 3.8 uH ±30 % Tolerance 5.5 A Shielded SMT Power Inductor
Product Details Search Results:
Coiltronics/DR1040-3R8-R
{"Termination":"SMT","Type":"Power","Inductance":"3.8 \u03bcH"}...
1392 Bytes - 01:47:02, 13 January 2026
Cooperbussmann.com/DR1040-3R8-R
{"Terminal Finish":"NOT SPECIFIED","Inductance-Nom (L)":"3.8 uH","Operating Temperature-Max":"125 Cel","Tolerance":"30 %","Status":"ACTIVE","Lead Free":"Yes","Test Frequency (at L-nom)":"0.1000 MHz","Operating Temperature-Min":"-40 Cel","Core Material":"FERRITE","Number of Functions":"1","Inductor Application":"POWER INDUCTOR","Shape/Size Description":"RECTANGULAR PACKAGE","DC Resistance":"0.0130 ohm","EU RoHS Compliant":"Yes","Terminal Placement":"DUAL ENDED","Shielded":"Yes","Terminal Shape":"WRAPAROUND",...
1405 Bytes - 01:47:02, 13 January 2026
Cooperindustries.com/DR1040-3R8-R
{"Category":"Inductors, Coils, Chokes","Current Rating":"5.5A","Catalog Drawings":"DR1040 Series","Height - Seated (Max)":"0.157\" (4.00mm)","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Package / Case":"Nonstandard","Current - Saturation":"6.4A","Tolerance":"\u00b130%","Shielding":"Shielded","DC Resistance (DCR)":"13 mOhm Max","Product Photos":"DR1040-3R8-R","Type":"Wirewound","Product Training Modules":"Shielded Drum Core Inductor Coiltronics DR Series","Datasheets":"DR1040 Series","Inductance":"3.8\...
1915 Bytes - 01:47:02, 13 January 2026
Eaton.com/DR1040-3R8-R
{"Case Size/Dimension":"10.3 x 10.5 x 4 mm","Inductance-Nom":"3.8 \u00b5H","Shielding":"Yes","Rated Current-Max":"5.5 A","Tolerance (%)":"\u00b130 %","DC Resistance":"13 m\u03a9"}...
1127 Bytes - 01:47:02, 13 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|

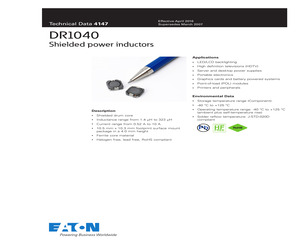

| DR1040-3R8-R.pdf | 0.03 | 1 | Request |
