Product Datasheet Search Results:

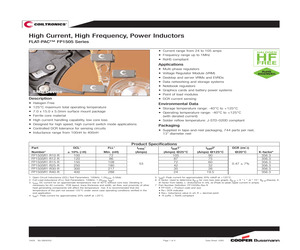

4 Pages, 452 KB, Original- FP1505R1-R15-R
- Cooper Industries
- 1 ELEMENT, 0.15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
5 Pages, 568 KB, Original- FP1505R1-R15-R
- Coiltronics / Eaton
- Fixed Inductors 108nH 53A Flat-Pac FP1505

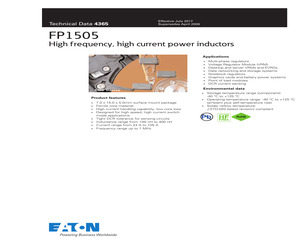

4 Pages, 452 KB, Original- FP1505R1-R15-R
- Eaton
- FP1505 Series 150 nH ±10% 53 A Surface Mount Power Inductor
Product Details Search Results:
Cooperbussmann.com/FP1505R1-R15-R
{"Terminal Finish":"NOT SPECIFIED","Inductance-Nom (L)":"0.1500 uH","Operating Temperature-Max":"125 Cel","Tolerance":"10 %","Status":"ACTIVE","Lead Free":"Yes","Test Frequency (at L-nom)":"0.1000 MHz","Operating Temperature-Min":"-40 Cel","Core Material":"FERRITE","Number of Functions":"1","Inductor Application":"POWER INDUCTOR","Shape/Size Description":"RECTANGULAR PACKAGE","DC Resistance":"4.70E-4 ohm","EU RoHS Compliant":"Yes","Terminal Placement":"DUAL ENDED","Terminal Shape":"J BEND","Manufacturer Ser...
1466 Bytes - 07:56:14, 13 January 2026
Cooperindustries.com/FP1505R1-R15-R
{"Category":"Inductors, Coils, Chokes","Current Rating":"53A","Operating Temperature":"-40\u00b0C ~ 125\u00b0C","Package / Case":"Nonstandard","Current - Saturation":"72A","Type":"Wirewound","Shielding":"Unshielded","DC Resistance (DCR)":"0.47 mOhm","Height - Seated (Max)":"0.197\" (5.00mm)","Tolerance":"\u00b110%","Datasheets":"FP1505 Series","Inductance":"150nH","Standard Package":"744","Family":"Fixed Inductors","Size / Dimension":"0.579\" L x 0.264\" W (14.70mm x 6.70mm)","Frequency - Test":"100kHz","Ma...
1746 Bytes - 07:56:14, 13 January 2026
Eaton.com/FP1505R1-R15-R
{"Case Size/Dimension":"7.2 x 6.7 x 3 mm","Inductance-Nom":"0.1 \u00b5H","Shielding":"No","Rated Current-Max":"39 A","Tolerance (%)":"\u00b115 %","DC Resistance":"0.24 m\u03a9"}...
1067 Bytes - 07:56:14, 13 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|
| FP1005R1-R15-R.pdf | 1.65 | 1 | Request |
