Product Datasheet Search Results:

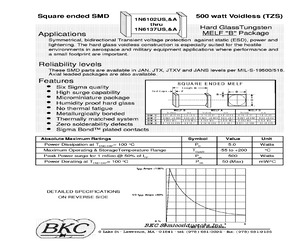

2 Pages, 180 KB, Scan- JANTX1N6111AUS
- Microsemi Corp.
- 500 W, BIDIRECTIONAL, SILICON, TVS DIODE
4 Pages, 41 KB, Original- JANTX1N6111AUS
- Semtech Corp.
- 500 W, UNIDIRECTIONAL, SILICON, TVS DIODE
Product Details Search Results:
Microsemi.com/JANTX1N6111AUS
{"Category":"Circuit Protection","Voltage - Clamping (Max) @ Ipp":"22.3V","Operating Temperature":"-55\u00b0C ~ 175\u00b0C (TJ)","Package / Case":"SQ-MELF, B","Type":"Zener","Product Photos":"MIL-SQ-MELF, B","Voltage - Breakdown (Min)":"15.2V","Applications":"General Purpose","Datasheets":"1N6103-37AUS","Standard Package":"1","Voltage - Reverse Standoff (Typ)":"12.2V","Power Line Protection":"No","Bidirectional Channels":"1","Current - Peak Pulse (10/1000\u00b5s)":"22.4A","Family":"TVS - Diodes","Mounting T...
1663 Bytes - 00:14:36, 14 January 2026
Semtech.com/JANTX1N6111AUS
{"Status":"ACTIVE","Polarity":"UNIDIRECTIONAL","Terminal Finish":"NOT SPECIFIED","Package Body Material":"UNSPECIFIED","Mfr Package Description":"HERMETIC SEALED, SURFACE MOUNT PACKAGE-2","Breakdown Voltage-Min":"15.2 V","Terminal Form":"NO LEAD","Package Style":"LONG FORM","Non-rep Peak Rev Power Dis-Max":"500 W","Diode Element Material":"SILICON","Power Dissipation Limit-Max":"1.5 W","Number of Elements":"1","Case Connection":"ISOLATED","Stand-off Voltage":"12.2 V","Terminal Position":"END","Diode Type":"...
1358 Bytes - 00:14:36, 14 January 2026
