Product Datasheet Search Results:
5 Pages, 164 KB, Original- JW2SN-DC24V
- Panasonic / Nais
- JW relay. Compact PC board power relay. 2 form C. Coil voltage 24 V DC. Standard (5A) type. Sealed type. Class E insulation.
11 Pages, 488 KB, Original- JW2SN-DC24V
- Panasonic
- JW Series 5A DPDT 24 VDC Through Hole Sealed Non-Polarized Miniature Power Relay
6 Pages, 111 KB, Original- JW2SN-DC24V
- Panasonic Electric Works
- Power Relays, JW Series, Power - General Purpose, Non Latching, DPDT, 24 VDC, 5 A
Product Details Search Results:
Panasonic.co.jp/JW2SN-DC24V
{"Function":"Power","Current Rating":"5 A","Voltage, Control":"24 VDC","Mounting Type":"PCB","Brand/Series":"JW Series","Contact Form":"DPDT","Relay Type":"Electro Mechanical","Voltage, Rating":"380 VAC","Standards":"UL, CSA, VDE, TUV","Current, Rating":"5 A","Number of Pins":"8","Power, Rating":"1250\u2044150 VA\u2044W","Termination":"Solder"}...
1289 Bytes - 02:22:36, 14 January 2026
Panasonic-electric-works.com/JW2SN-DC24V
{"Category":"Relays","Turn Off Voltage (Min)":"2.4 VDC","Relay Type":"General Purpose","Termination Style":"PC Pin","Catalog Drawings":"JW Series PCB JW2SN Footprint JW2SN Circuit","Operating Temperature":"-40\u00b0C ~ 60\u00b0C","Coil Resistance":"1.1 kOhms","Coil Current":"22mA","Turn On Voltage (Max)":"16.8 VDC","Product Photos":"JW2SN-DC24V","Switching Voltage":"250VAC, 30VDC - Max","Coil Power":"530 mW","Datasheets":"JW Series","Standard Package":"100","Other Related Documents":"General Appl Guidelines...
2094 Bytes - 02:22:36, 14 January 2026
Documentation and Support
Use our online request for specific proposed solutions or send your technical question directly to a product specialist at request:
| File Name | File Size (MB) | Document | MOQ | Support |
|---|---|---|---|---|

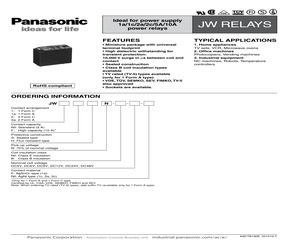

| JW2SN-DC24V.pdf | 0.34 | 1 | Request |
