Product Datasheet Search Results:
6 Pages, 111 KB, Original- VOD223T
- Vishay / Semiconductor
- Optocoupler DC-IN 2-CH Darlington DC-OUT 8-Pin SOIC

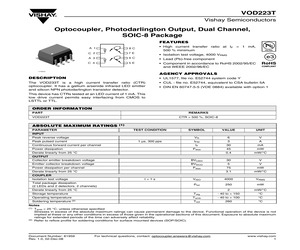

6 Pages, 102 KB, Original- VOD223T-X001
- Vishay Presicion Group
- 2 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER
Product Details Search Results:
Vishay.com/VOD223T
{"Category":"Isolators","Vce Saturation (Max)":"1V","Operating Temperature":"-40\u00b0C ~ 100\u00b0C","Input Type":"DC","Package / Case":"8-SOIC (0.154\", 3.90mm Width)","Current Transfer Ratio (Min)":"500% @ 1mA","Current Transfer Ratio (Max)":"-","Rise / Fall Time (Typ)":"-","Output Type":"Darlington with Base","Current - DC Forward (If) (Max)":"30mA","Datasheets":"VOD223T","Number of Channels":"1","Standard Package":"2,000","Voltage - Output (Max)":"30V","Current - Output / Channel":"-","Voltage - Forwar...
1619 Bytes - 20:53:51, 12 January 2026
Vishay.com/VOD223T-X001
{"Terminal Finish":"MATTE TIN","Mounting Feature":"SURFACE MOUNT","Forward Current-Max":"0.0300 A","JESD-609 Code":"e3","Dark Current-Max":"50 nA","Additional Feature":"CMOS COMPATIBLE, UL RECOGNIZED, VDE APPROVED","Status":"Active","Operating Temperature-Min":"-40 Cel","Sub Category":"Optocoupler - Transistor Outputs","Configuration":"SEPARATE, 2 CHANNELS","Coll-emtr Bkdn Voltage-Min":"30 V","Operating Temperature-Max":"100 Cel","EU RoHS Compliant":"Yes","Current Transfer Ratio-Nom":"500 %","Optoelectronic...
1536 Bytes - 20:53:51, 12 January 2026
